Raised Button On-(On) Momentary 16mm Vandal Push Switch SPDT
SKU 484998
MPN: 484998
Availability:
25 in stock
Original price
£5.99
-
Original price
£5.99
Original price
£5.99
Inc VAT
£5.99
-
£5.99
Current price
£5.99
Inc VAT

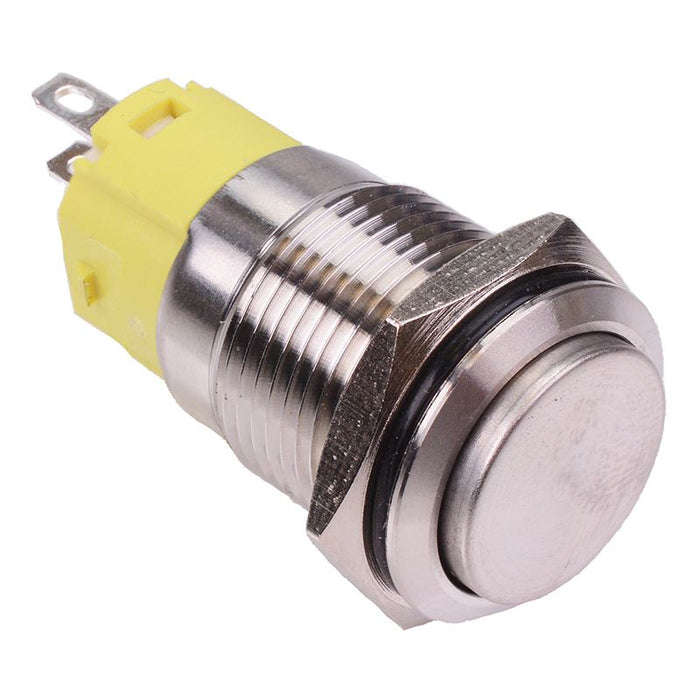

Raised actuator momentary vandal resistant push button switch manufactured from stainless steel, featuring NO/NC contacts. The switch features IP65 protection rating and is suitable for a wide range of applications requiring a reliable switch to compliment a panel.
Momentary On-(On) action IP65 protection rating 16mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Contact configuration | SPDT |
| Contact rating | 5A 250VAC |
| Current rating | 3A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 16mm |
| Protection level | IP65 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
