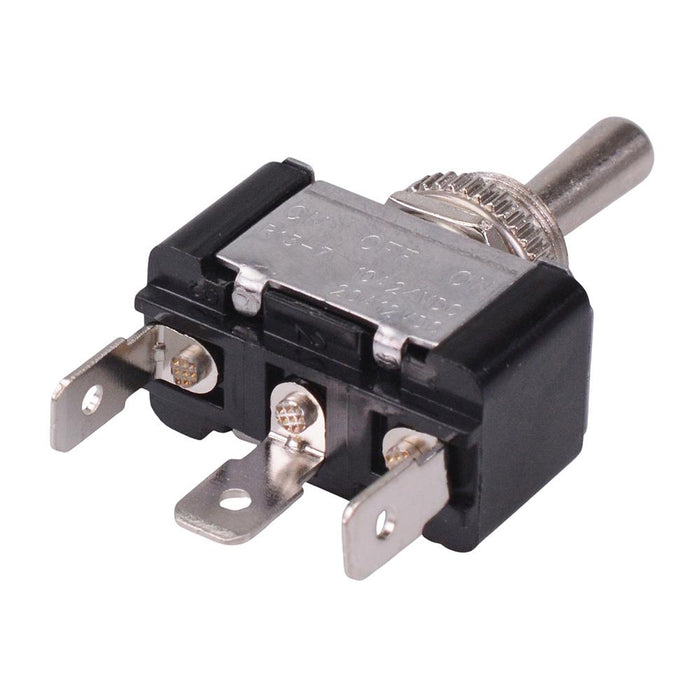

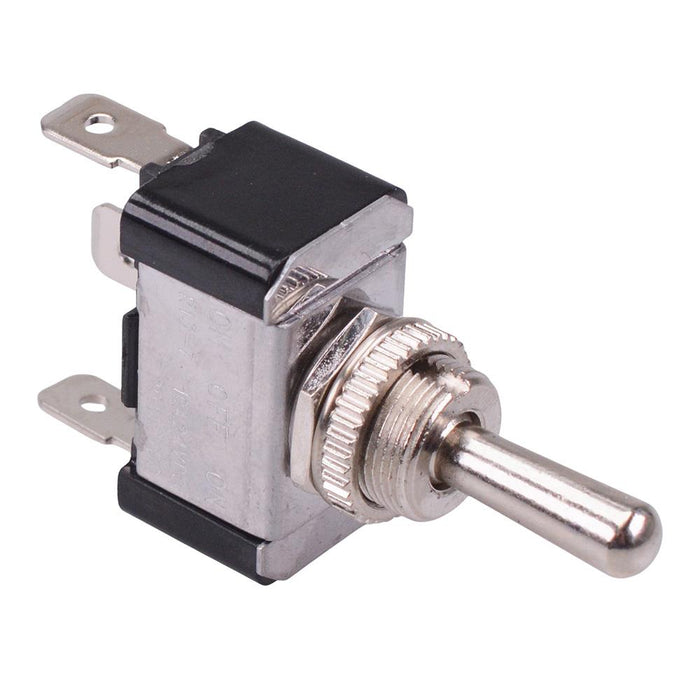

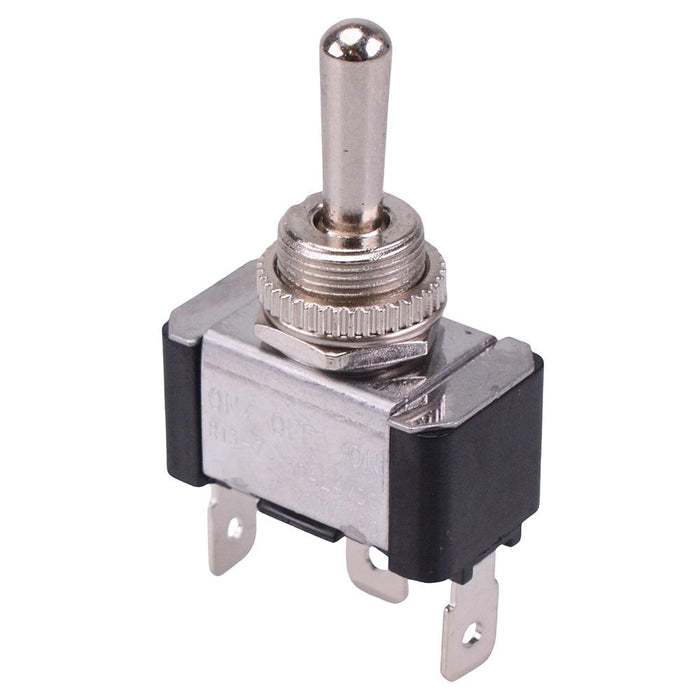

R13-7-01-HWR On-Off-On 12mm Toggle Switch SPDT 20A 12VDC
by SCI
SKU 491617
MPN: R13-7-01-HWR
Availability:
14 in stock
Original price
£2.14
-
Original price
£2.14
Original price
£2.14
£2.24
£2.24
-
£2.24
Current price
£2.24
The R13-7-01-HWR is a toggle switch with On-Off-On function and SPDT contacts, featuring quick connect terminals and 20A current rating. The switch requires a 12.2mm panel cut-out, and is suitable for a wide range of DC applications including automotive.
Function: On-Off-On Contacts: SPDT Panel cut-out: 12.2mm Rating: 20A 12VDC, 10A 24VDC Maximum panel thickness: 4mm Termination: 6.3mm quick connect M12*0.75mm thread SCI R13 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | SPDT |
| Contact Rating | 20A 12VDC, 10A 24VDC |
| Current Rating | 20A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | 0°C to +65°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4mm Max |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
