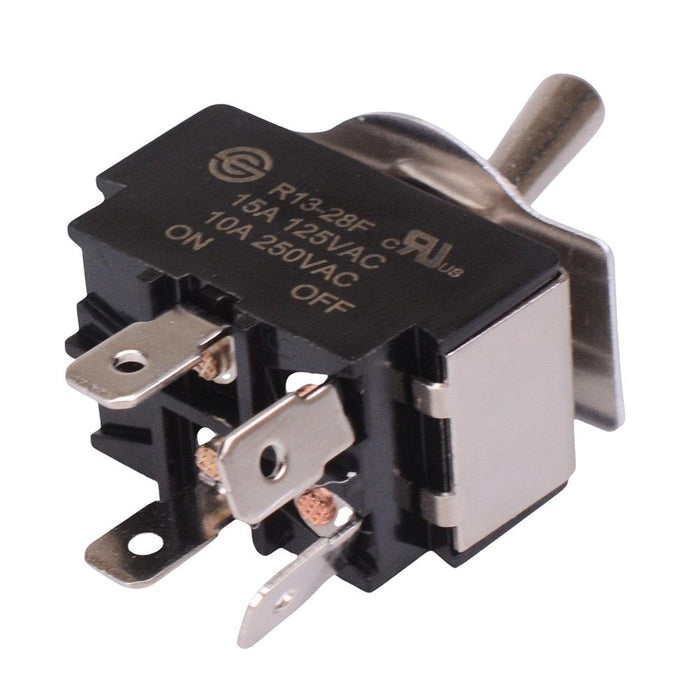

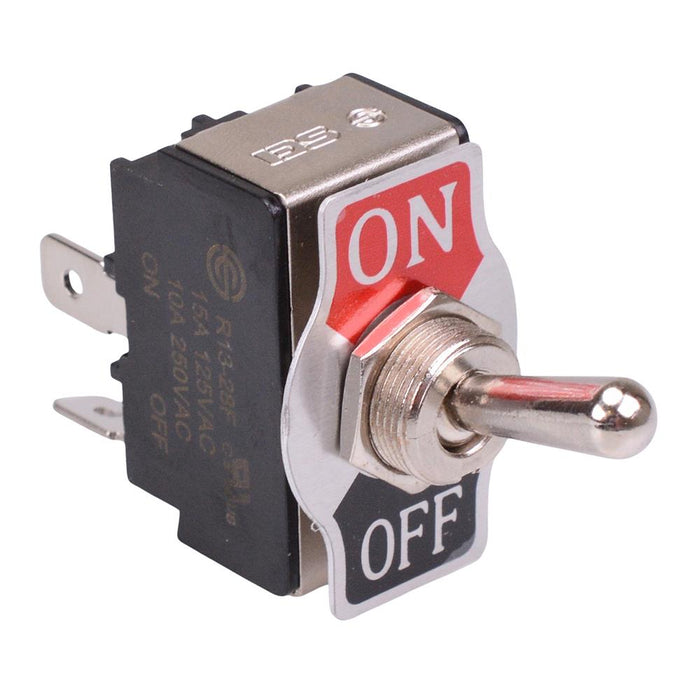

R13-28F-01 On-Off 12mm Toggle Switch DPST 20A 12VDC
by SCI
SKU 491605
MPN: R13-28F-01
Availability:
Only 1 left!
Original price
£3.66
-
Original price
£3.66
Original price
£3.66
£3.84
£3.84
-
£3.84
Current price
£3.84
The R13-28F-01 toggle switch are On-Off function and DPST contacts, featuring quick connect terminals and requires a 12.2mm diameter mounting hole. The switch features 20A 12VDC rating, suitable for a wide range of DC applications including automotive.
Function: On-Off Contacts: DPST Panel cut-out: 12.2mm Rating: 20A 12VDC Maximum panel thickness: 6mm Termination: 6.3mm quick connect M12*0.75mm thread SCI R13-28 series
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Contact Configuration | DPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 6mm Max |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
