R13-2-05 On-Off Standard Toggle Switch SPST

by SCI
SKU 480155

MPN: R13-2-05-H

Availability:
195 in stock
Original price £0.66 - Original price £0.66
Original price
£0.66 Inc VAT
£0.66 - £0.66
Current price £0.66 Inc VAT

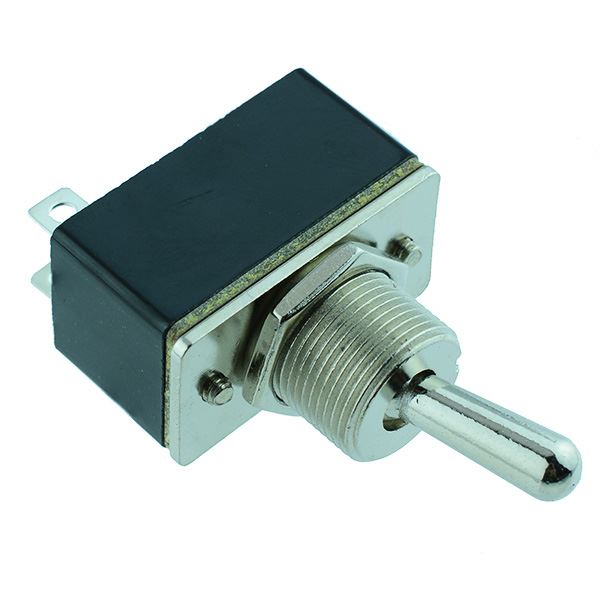

R13-2-05 standard On-Off toggle switch featuring SPST contacts and reliable mechanism, suitable for low power applications.

  • Rating: 1.5A 250VAC
  • Panel cut-out: 12mm
  • Solder contacts
  • Size: 25.2 x 41.9 x 14mm (Length x Height x Width)
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Contact configuration SPST
    Contact rating 1.5A 250VAC
    Current rating 1.5A
    Illuminated No
    Material Black PF
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 12mm
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 250VAC
