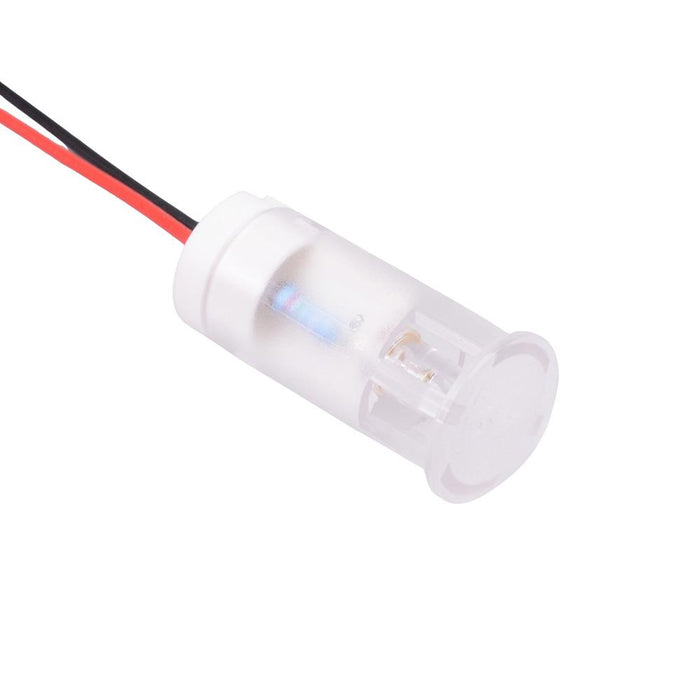

QS123XXHW110 Hyper Bright White 12mm 110VAC Snap-In Prewired Panel Indicator APEM
by APEM
SKU 492746
MPN: QS123XXHW110
Availability:
200 in stock
Original price
£5.93
-
Original price
£5.93
Original price
£5.93
£5.93
£5.93
-
£5.93
Current price
£5.93

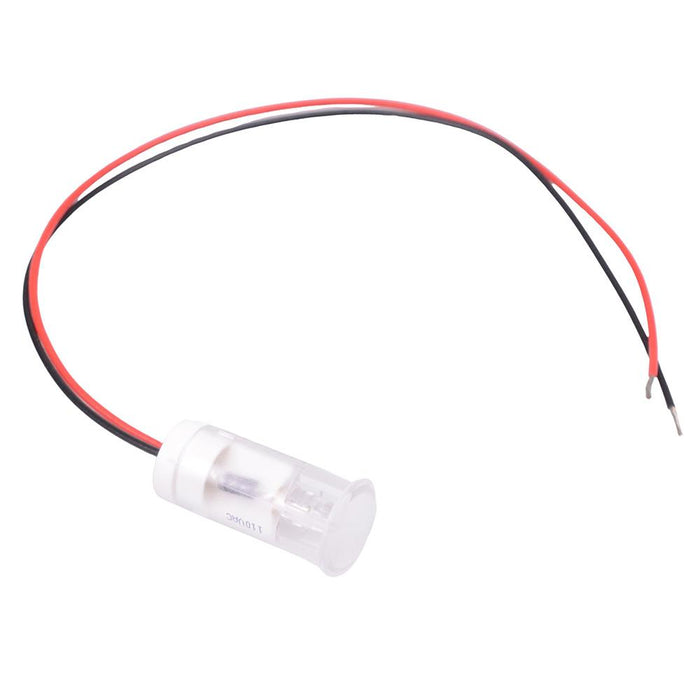

The QS123XXHW110 is a hyper bright white snap-in panel mount LED indicator from the APEM QS series, featuring a 12mm cut-out and moulded body. The indicator features a low profile bezel and 200mm tail wires.
Colour: white Panel cut-out: 12mm Voltage rating: 110VAC Current rating: 6mA Panel thickness: 0.8 to 1.6mm Operating voltage: 99 to 121VAC Bezel material: polycarbonate Terminal type: 200mm wires Length: 28.5mm Diameter: 14mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | White |
| Diameter | 14mm |
| Forward Current | 6mA |
| Lamp Type | LED |
| Length | 28.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 0.8 to 1.6mm |
| Voltage Rating | 110VAC |
