QS121XXHY110 Hyper Bright Yellow 12mm 110VAC Snap-In Panel Indicator APEM
by APEM
SKU 492745
MPN: QS121XXHY110
Availability:
179 in stock
Original price
£5.42
-
Original price
£5.42
Original price
£5.42
£5.42
£5.42
-
£5.42
Current price
£5.42

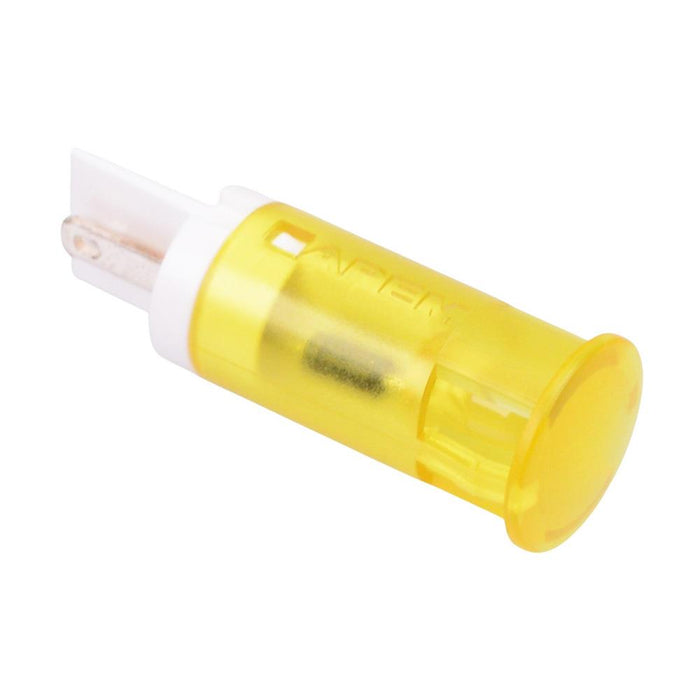

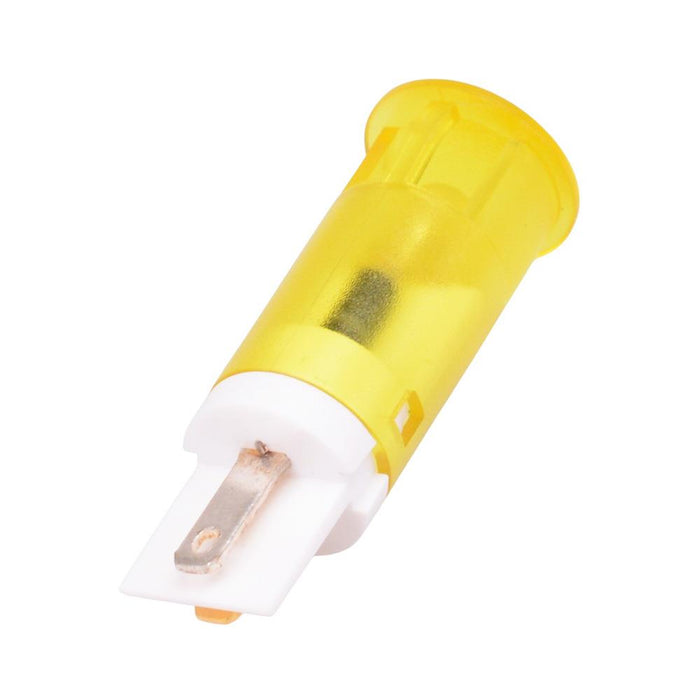

The QS121XXHY110 is a hyper bright yellow snap-in panel mount LED indicator from the APEM QS series, featuring a 12mm cut-out and moulded body. The indicator features a low profile bezel and 2.8mm quick connect terminals.
Colour: yellow Panel cut-out: 12mm Voltage rating: 110VAC Current rating: 6mA Panel thickness: 0.8 to 1.6mm Brightness: 2100mcd Operating voltage: 99 to 121VAC Bezel material: polycarbonate Terminal type: quick connect / solder 2.8 x 0.8mm Length: 38.5mm Diameter: 14mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 14mm |
| Forward Current | 6mA |
| Lamp Type | LED |
| Length | 38.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 0.8 to 1.6mm |
| Voltage Rating | 110VAC |
