QS101YYRG12 Red / Green 10mm 12VDC Snap-In Panel Indicator APEM
by APEM
SKU 492743
MPN: QS101YYRG12
Availability:
100 in stock
Original price
£6.24
-
Original price
£6.24
Original price
£6.24
£6.55
£6.55
-
£6.55
Current price
£6.55

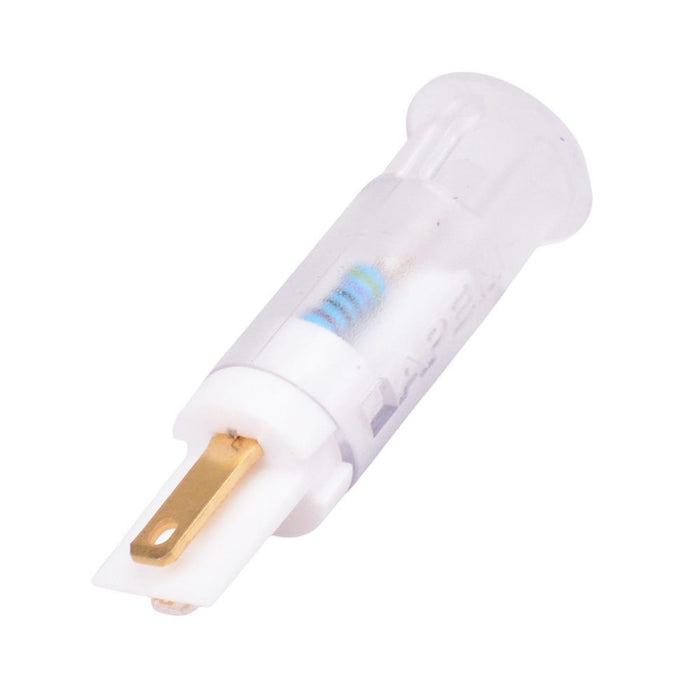

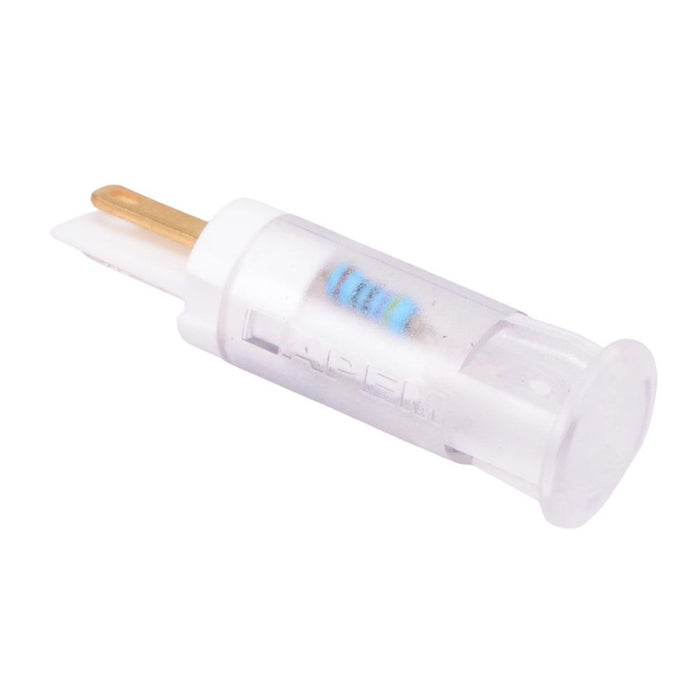

The QS101YYRG12 is a bi-colour red green snap-in panel mount LED indicator from the APEM QS series, featuring a 10mm cut-out and moulded body. The indicator features a low profile bezel and 2.8mm quick connect terminals.
Colour: red / green Panel cut-out: 10mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 0.8 to 1.6mm Brightness: 45mcd Operating voltage: 10.8 to 13.2VDC Bezel material: polycarbonate Terminal type: quick connect / solder 2.8 x 0.8mm Length: 38.25mm Diameter: 12mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red / Green |
| Diameter | 12mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 38.25mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 10mm |
| Panel Thickness | 0.8 to 1.6mm |
| Voltage Rating | 12VDC |
