QRM65BXXB12E Blue 6mm 12VDC LED Rear Mounting Panel Indicator IP67 APEM
by APEM
SKU 492737
MPN: QRM65BXXB12E
Availability:
162 in stock
Original price
£15.50
-
Original price
£15.50
Original price
£15.50
£15.50
£15.50
-
£15.50
Current price
£15.50

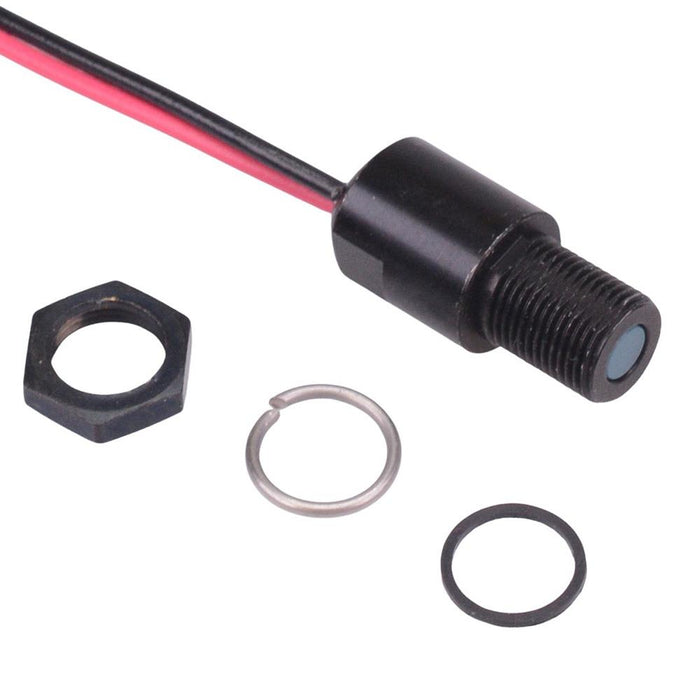

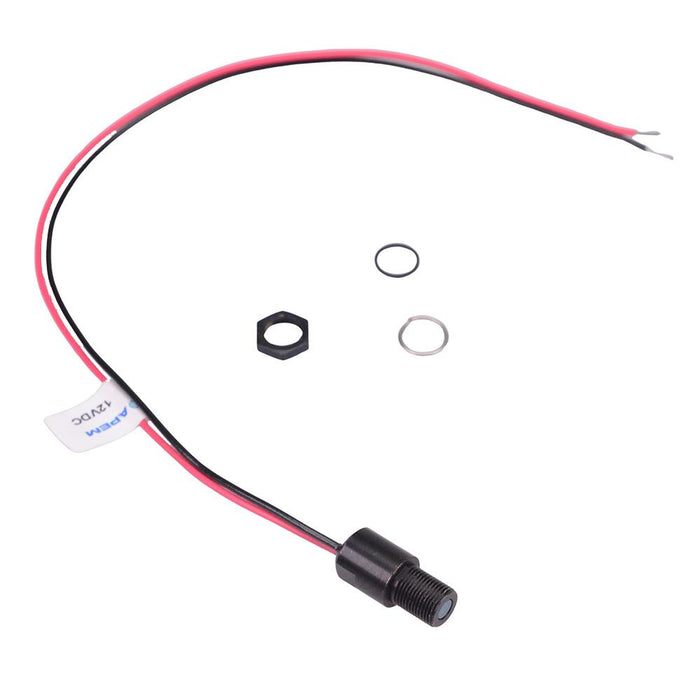

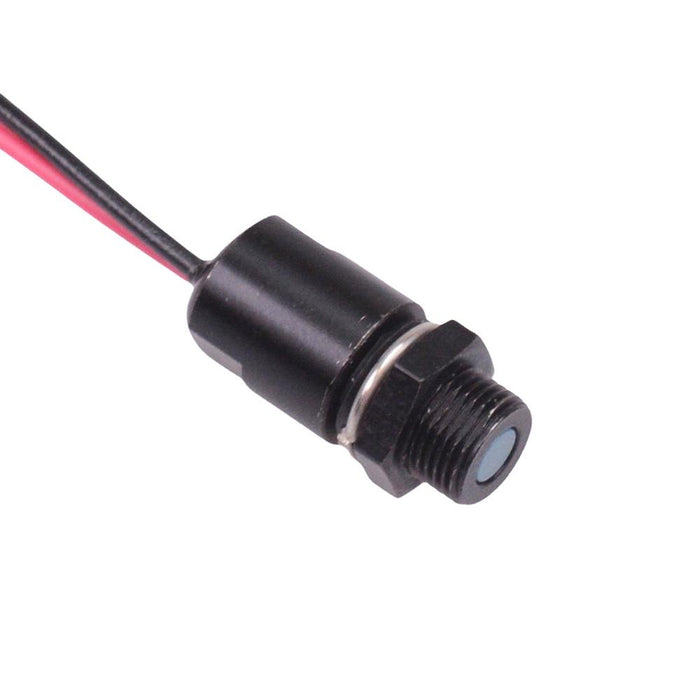

The QRM65BXXB12E is a blue rear panel mount LED indicator from the APEM QRM6 series, featuring a 6mm cut-out and sealed to IP67. The indicator features a flush black plated brass bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: blue Panel cut-out: 6mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 3.5mm max Brightness: 200mcd Operating voltage: 10.8 to 13.2VDC Bezel material: black plated brass Protection level: IP67 Terminal type: 200mm wires Length: 15.8mm Diameter: 7.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Blue |
| Diameter | 7.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 15.8mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 3.5mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
