Q8R8BZZRYG02E Red / Green / Yellow Recessed 8mm LED Panel Indicator IP67 APEM
by APEM
SKU 492729
MPN: Q8R8BZZRYG02E
Availability:
33 in stock
Original price
£6.55
-
Original price
£6.55
Original price
£6.55
£6.55
£6.55
-
£6.55
Current price
£6.55

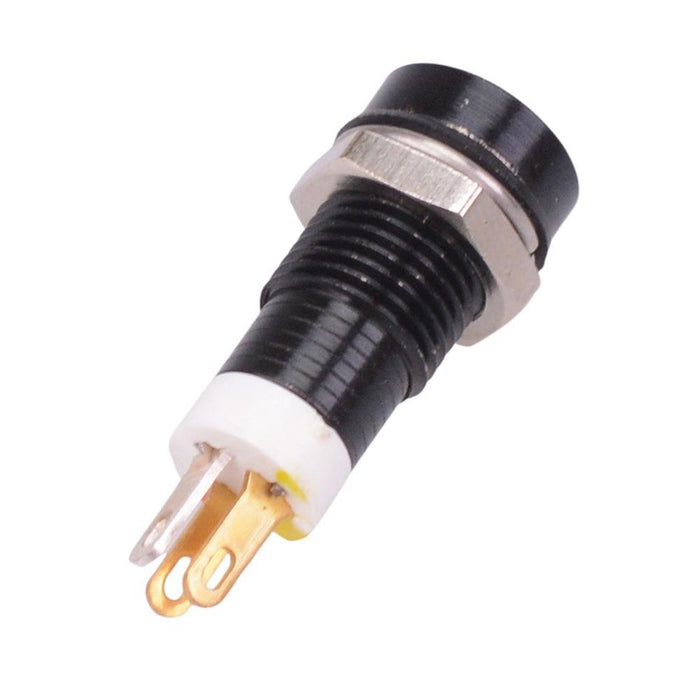

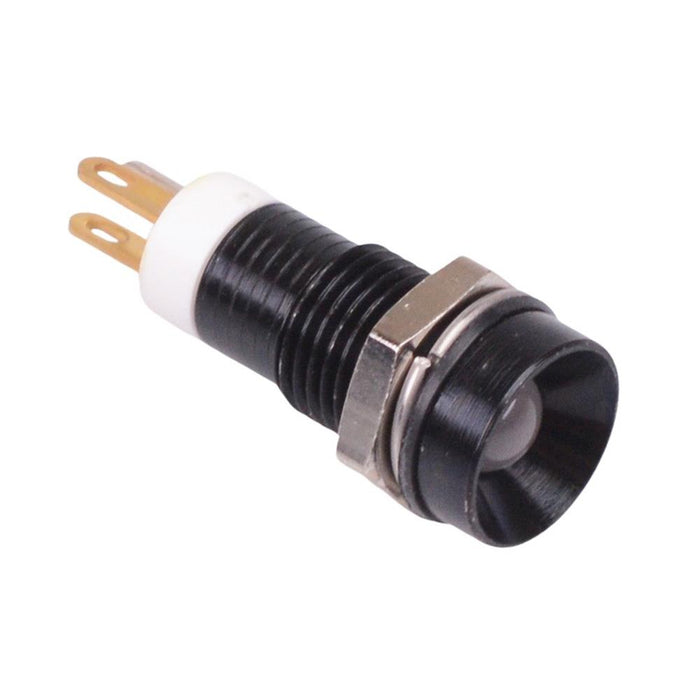

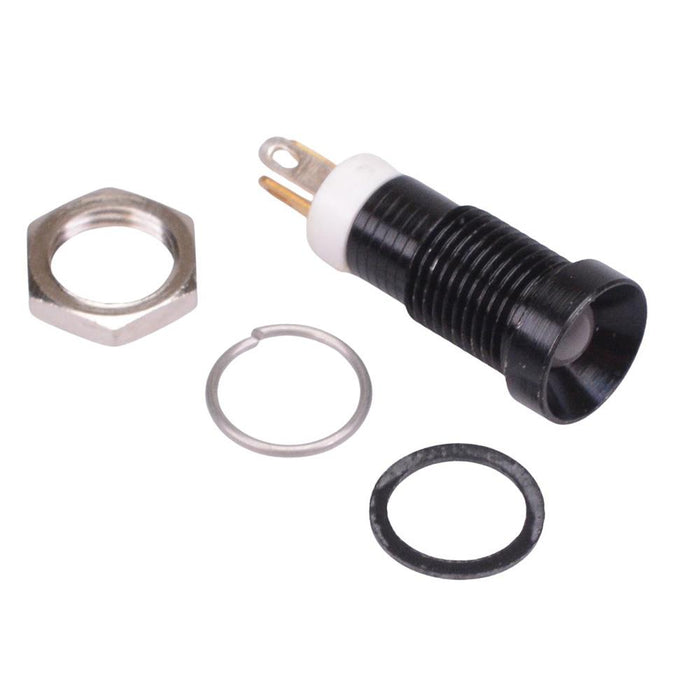

The Q8R8BZZRYG02E is a tri-colour red green yellow panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a recessed black plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red / green / yellow Panel cut-out: 8mm Voltage rating: 2.1VDC Current rating: 20mA Panel thickness: 7mm max Brightness: red 150mcd, green 100mcd, yellow 100mcd Operating voltage: 1.8 to 3.3VDC Bezel material: black plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 18.5mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red / Green / Yellow |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 18.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
