Q8R7CXXSG24E Super Bright Green Recessed 8mm 24VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492727
MPN: Q8R7CXXSG24E
Availability:
25 in stock
Original price
£6.86
-
Original price
£6.86
Original price
£6.86
£6.86
£6.86
-
£6.86
Current price
£6.86

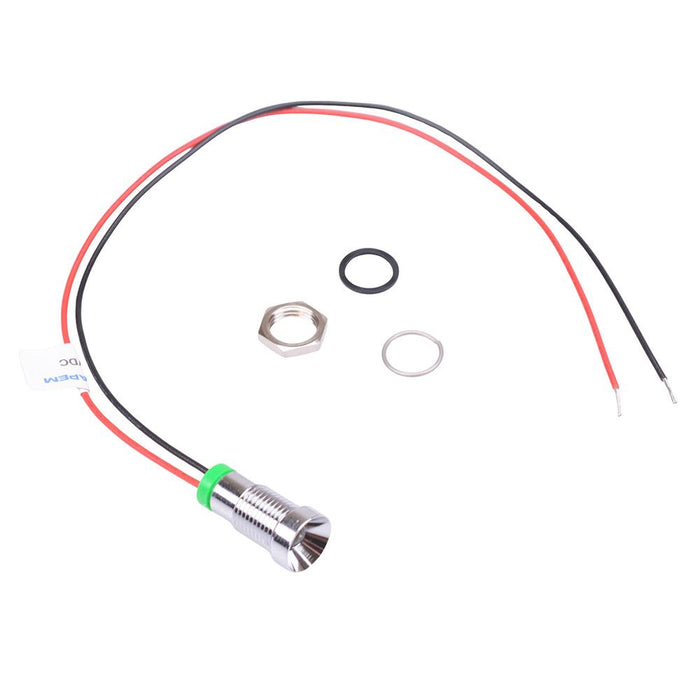

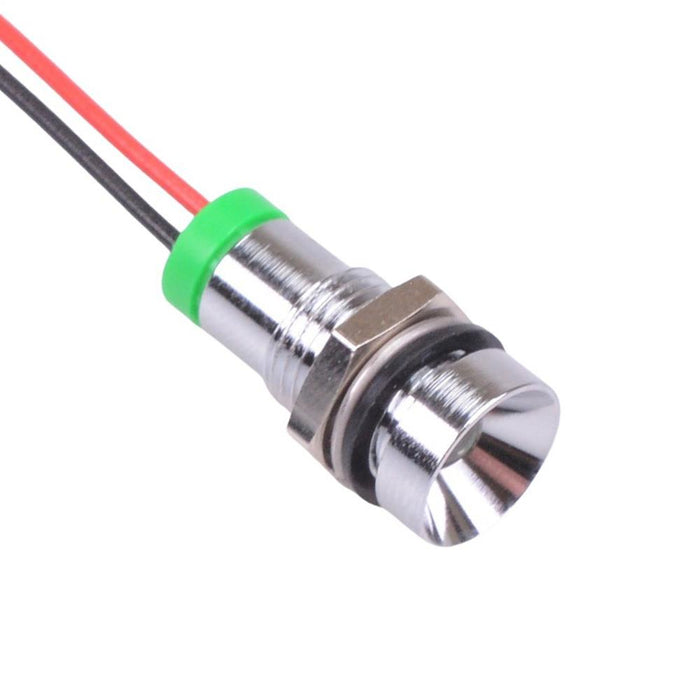

The Q8R7CXXSG24E is a super bright green panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a recessed chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 8mm Voltage rating: 24VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 10,000mcd Operating voltage: 21.6 to 26.4VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: 200mm wires Length: 18.5mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 18.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24VDC |
