Q8R3BXXR24AE Blue Recessed 8mm 24V LED Panel Indicator IP67 APEM
by APEM
SKU 492717
MPN: Q8R3BXXR24AE
Availability:
100 in stock
Original price
£6.92
-
Original price
£6.92
Original price
£6.92
£6.92
£6.92
-
£6.92
Current price
£6.92

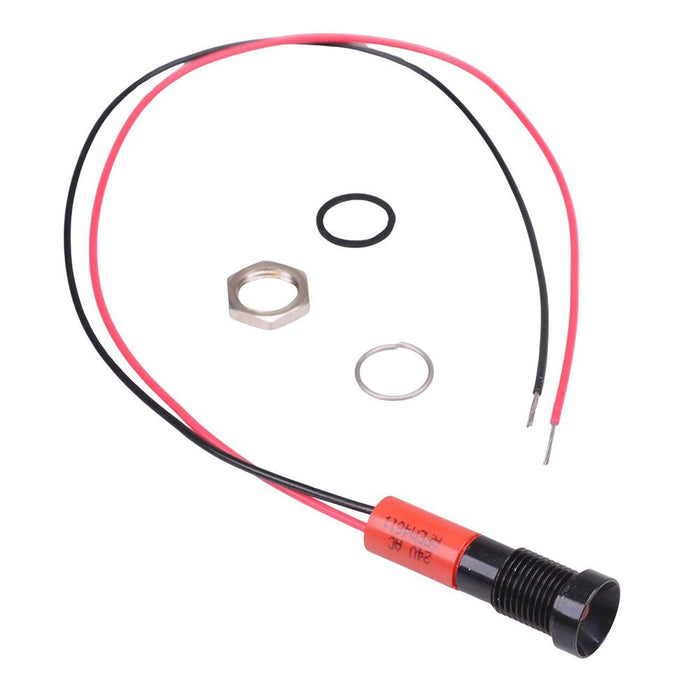

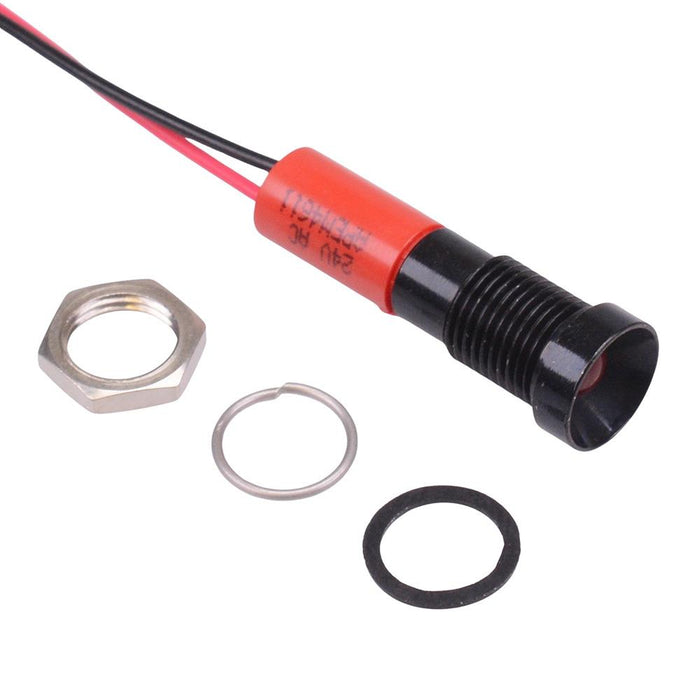

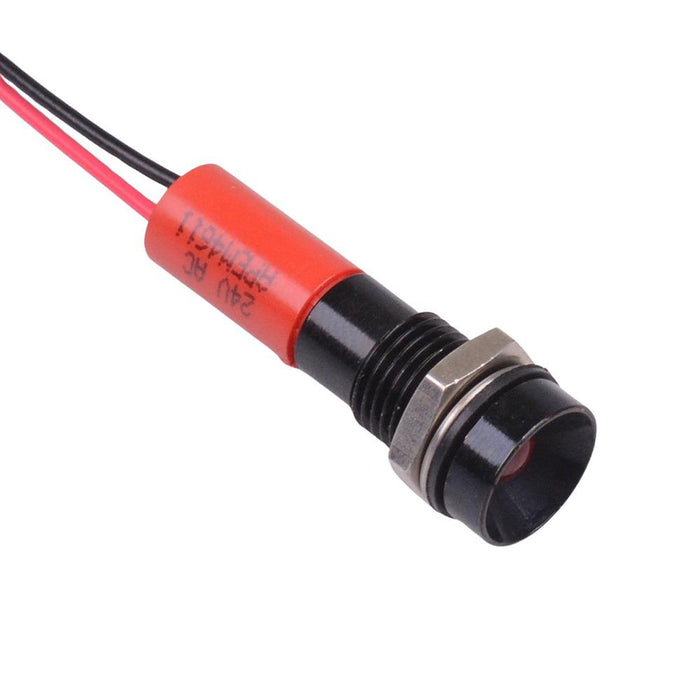

The Q8R3BXXR24AE is a red panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a recessed black plated brass bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: blue Panel cut-out: 8mm Voltage rating: 24VAC/DC Current rating: 20mA Panel thickness: 7mm max Brightness: 1600mcd Operating voltage: 21.6 to 26.4VAC/DC Bezel material: black plated brass Protection level: IP67 Terminal type: 200mm wires Length: 28.5mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Blue |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 28.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24VAC/DC |
