Q8R1GXXR12 Red Recessed 8mm 12VDC LED Panel Indicator APEM
by APEM
SKU 492716
MPN: Q8R1GXXR12
Availability:
136 in stock
Original price
£5.66
-
Original price
£5.66
Original price
£5.66
£5.66
£5.66
-
£5.66
Current price
£5.66

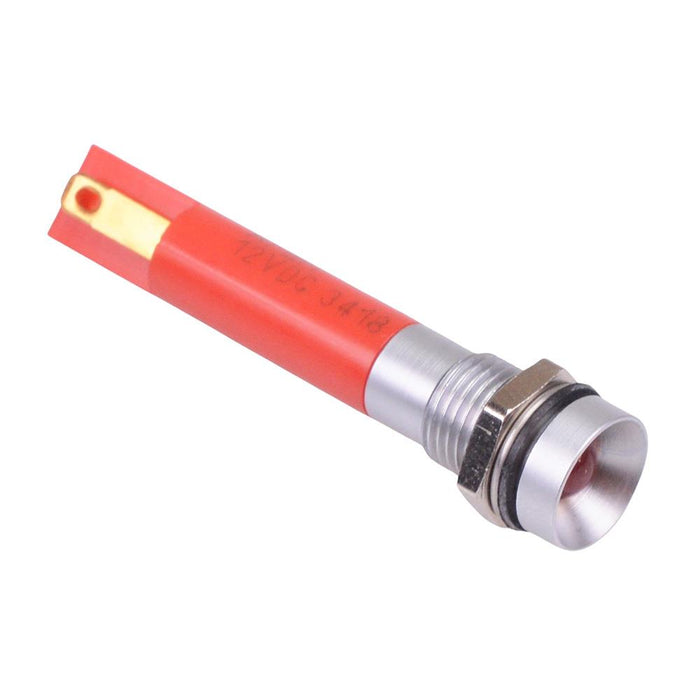

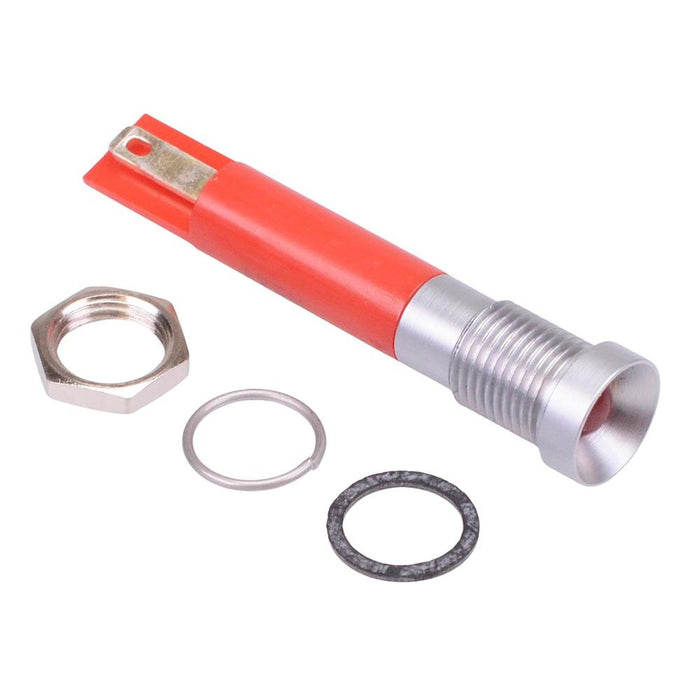

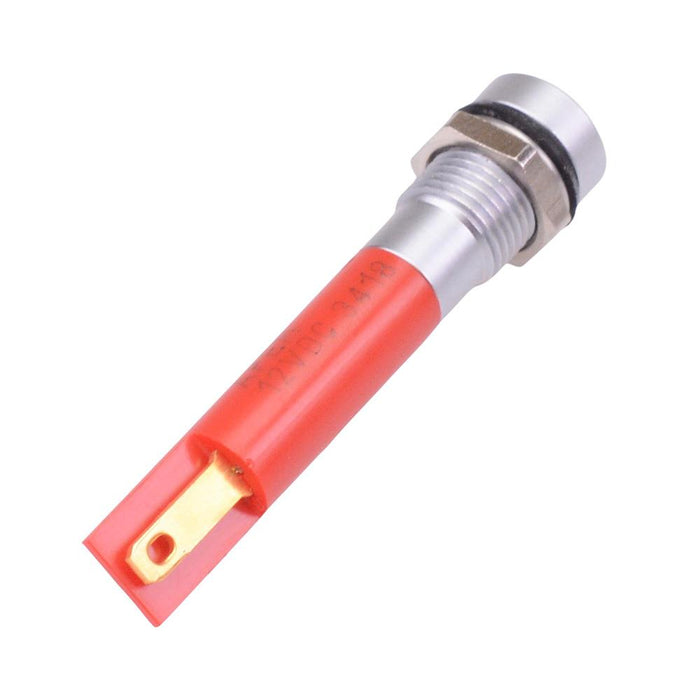

The Q8R1GXXR12 is a red panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out. The indicator features a recessed satin grey plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 8mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 80mcd Operating voltage: 10.8 to 13.2VDC Bezel material: satin grey plated brass Terminal type: quick connect / solder 2.8 x 0.8mm Length: 34.85mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 34.85mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Voltage Rating | 12VDC |
