Q8R1CXXR110 Red Recessed 8mm 110VAC LED Panel Indicator APEM
by APEM
SKU 492713
MPN: Q8R1CXXR110
Availability:
17 in stock
Original price
£6.00
-
Original price
£6.00
Original price
£6.00
£6.30
£6.30
-
£6.30
Current price
£6.30

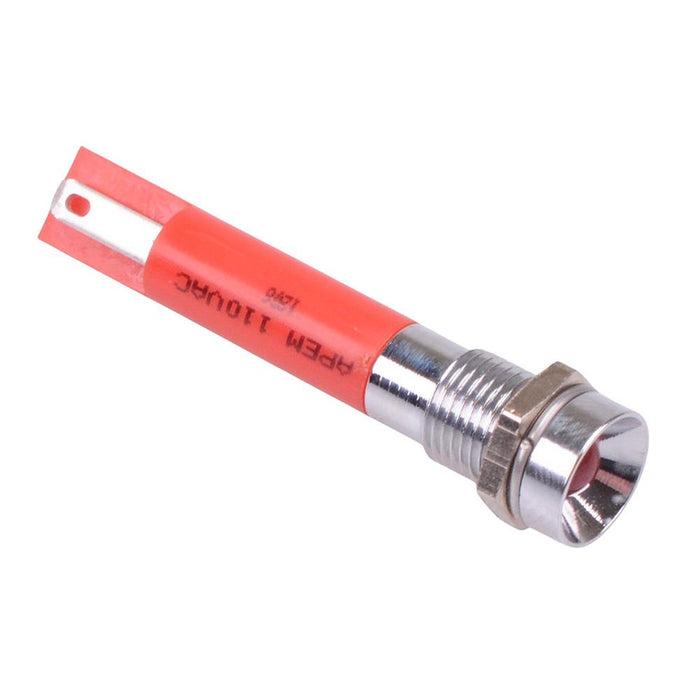

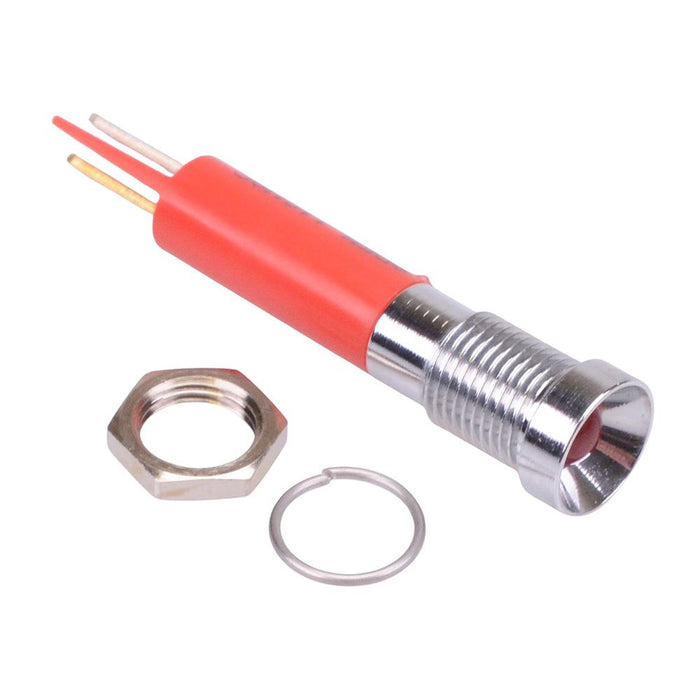

The Q8R1CXXR110 is a red panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out. The indicator features a recessed chrome bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 8mm Voltage rating: 110VAC Current rating: 6mA Panel thickness: 7mm max Brightness: 80mcd Operating voltage: 99 to 121VAC Bezel material: chrome plated brass Terminal type: quick connect / solder 2.8 x 0.8mm Length: 34.85mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 9.4mm |
| Forward Current | 6mA |
| Lamp Type | LED |
| Length | 34.85mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Voltage Rating | 110VAC |
