Q8P1BXXSB24E Super Bright Blue Prominent 8mm 24VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492688
MPN: Q8P1BXXSB24E
Availability:
90 in stock
Original price
£6.72
-
Original price
£6.72
Original price
£6.72
£6.72
£6.72
-
£6.72
Current price
£6.72

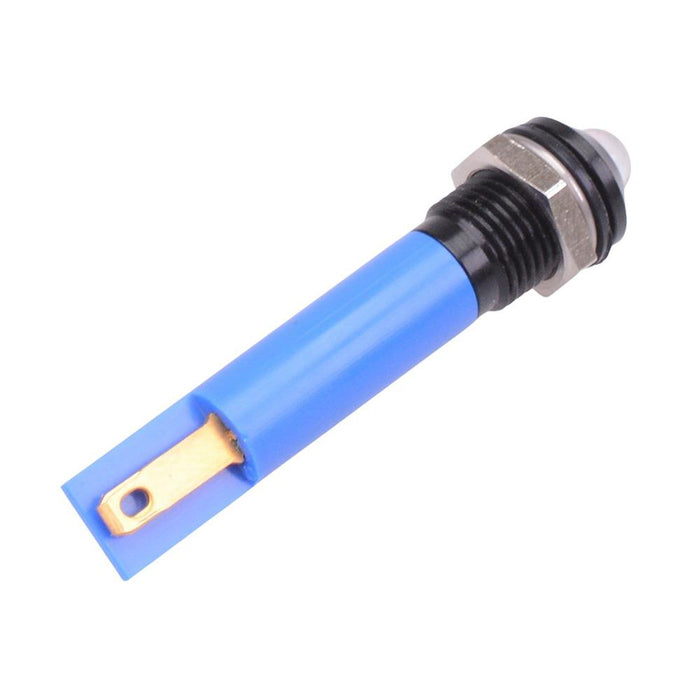

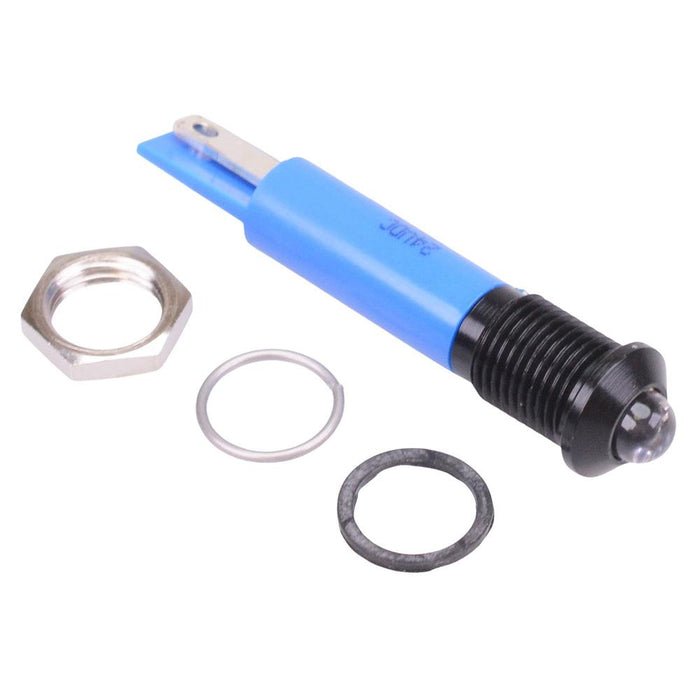

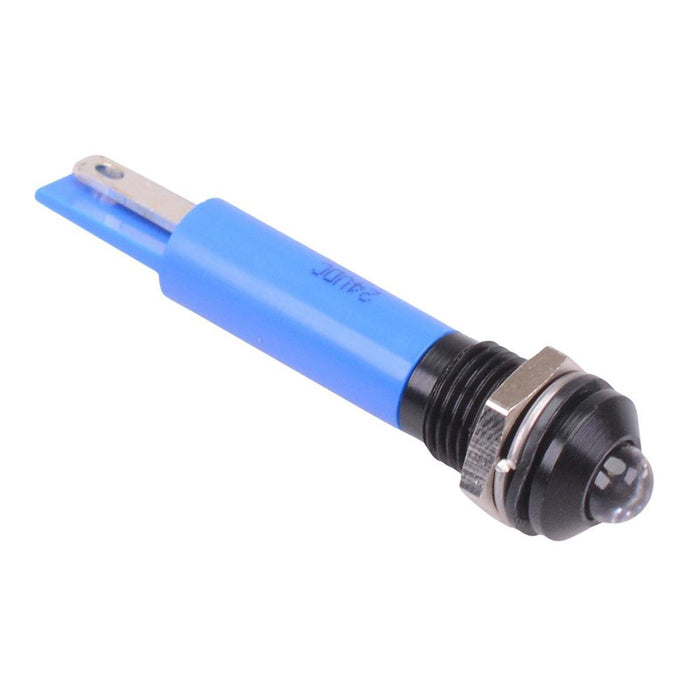

The Q8P1BXXSB24E is a super bright blue panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a prominent black plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: blue Panel cut-out: 8mm Voltage rating: 24VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 2200mcd Operating voltage: 21.6 to 26.4VDC Bezel material: black plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 33.85mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Blue |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 33.85mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24VDC |
