Q8F7CXXG12 Green Flush 8mm 12VDC LED Panel Indicator APEM
by APEM
SKU 492675
MPN: Q8F7CXXG12
Availability:
15 in stock
Original price
£6.64
-
Original price
£6.64
Original price
£6.64
£6.64
£6.64
-
£6.64
Current price
£6.64

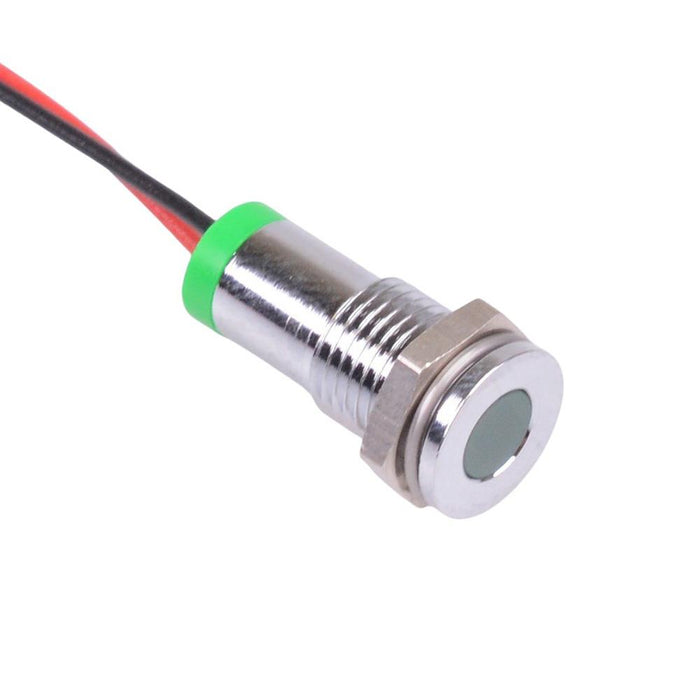

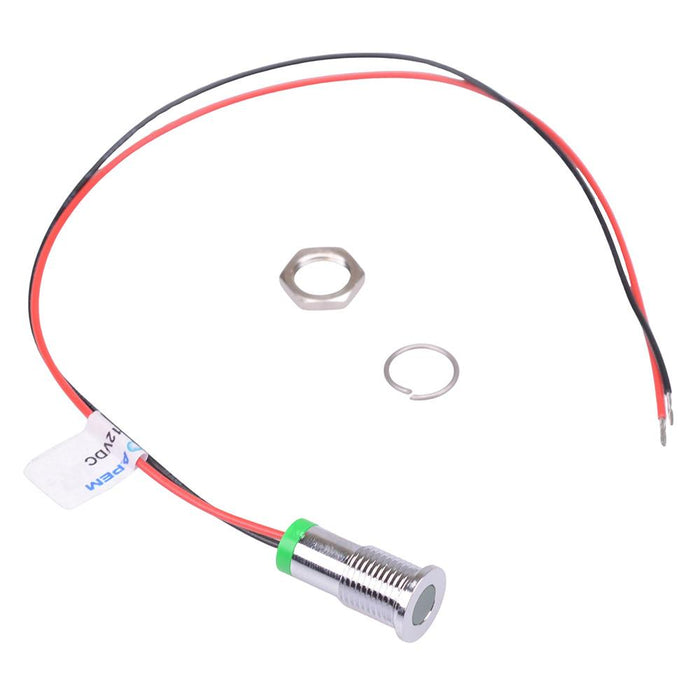

The Q8F7CXXG12 is a green panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out. The indicator features a flush chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 8mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 6mcd Operating voltage: 10.8 to 13.2VDC Bezel material: chrome plated brass Terminal type: 200mm wires Length: 17.6mm Diameter: 9.5mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 9.5mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 17.6mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Voltage Rating | 12VDC |
