Q8F5CXXG48E Green Flush 8mm 48VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492671
MPN: Q8F5CXXG48E
Availability:
41 in stock
Original price
£6.92
-
Original price
£6.92
Original price
£6.92
£6.92
£6.92
-
£6.92
Current price
£6.92

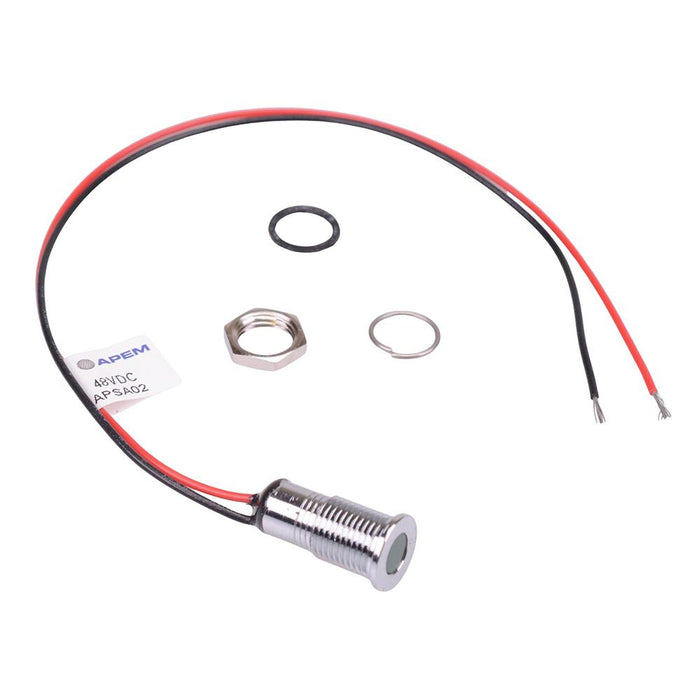

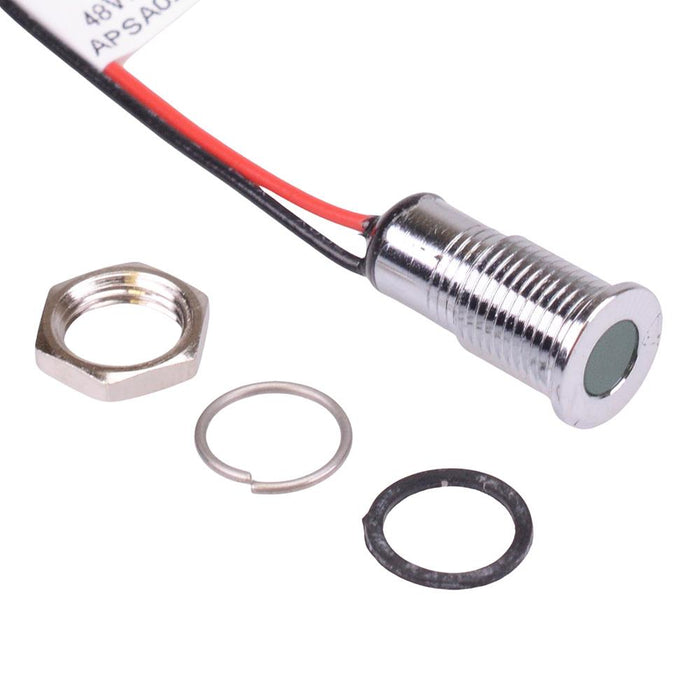

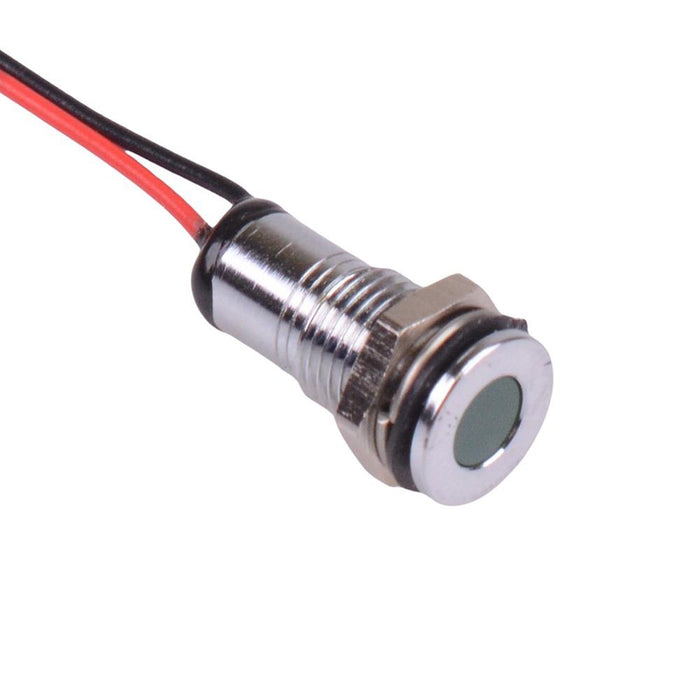

The Q8F5CXXG48E is a green panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a flush chrome bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 8mm Voltage rating: 48VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 6mcd Bezel material: chrome plated brass Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 15.6mm Diameter: 9.5mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 9.5mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 15.6mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 48VDC |
