Q8F5BXXSG3.3E Super Bright Green Flush 8mm 3.3VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492670
MPN: Q8F5BXXSG3.3E-X0504
Availability:
15 in stock
Original price
£7.10
-
Original price
£7.10
Original price
£7.10
£7.10
£7.10
-
£7.10
Current price
£7.10

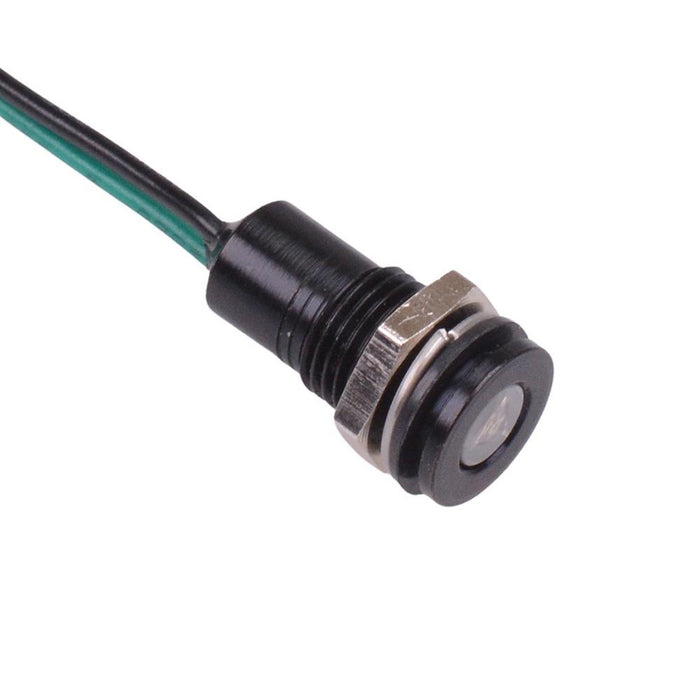

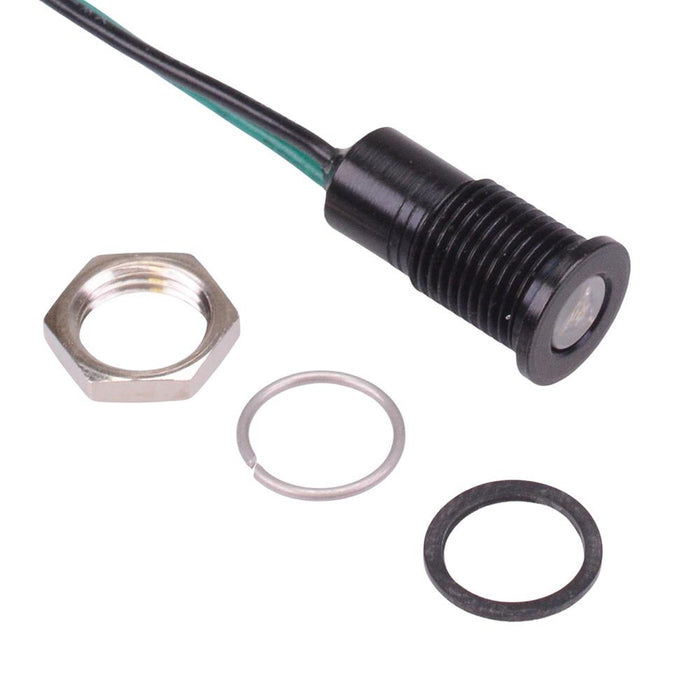

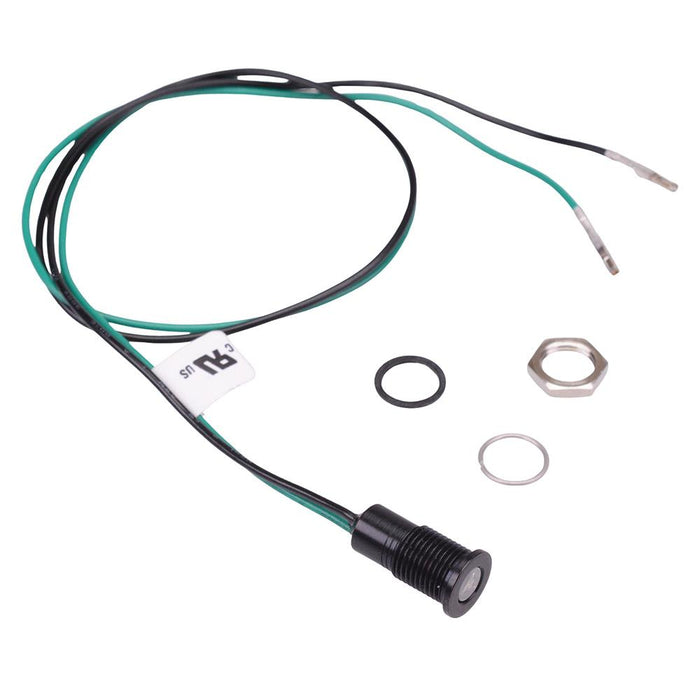

The Q8F5BXXSG3.3E-X0504 is a super bright green panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a flush black plated brass bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.

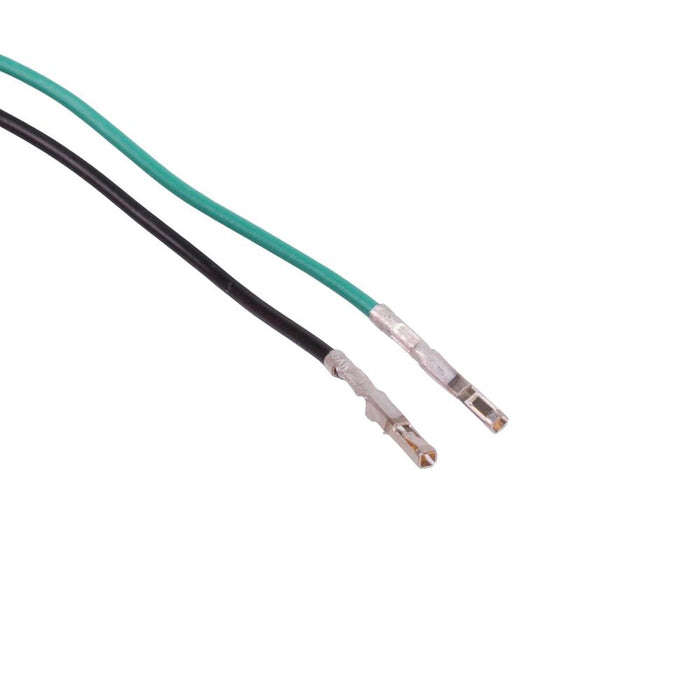

Colour: green Panel cut-out: 8mm Voltage rating: 3.3VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 3000mcd Operating voltage: 1.8 to 3.3VDC Bezel material: black plated brass Protection level: IP67 Terminal type: rear epoxy 350mm wires with female pin terminals Length: 15.6mm Diameter: 9.5mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 9.5mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 15.6mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 3.3VDC |
