Q8F5BXXR12 Red Flush 8mm 12VDC LED Panel Indicator APEM
by APEM
SKU 492669
MPN: Q8F5BXXR12-SP1-X0200
Availability:
102 in stock
Original price
£6.07
-
Original price
£6.07
Original price
£6.07
£6.07
£6.07
-
£6.07
Current price
£6.07

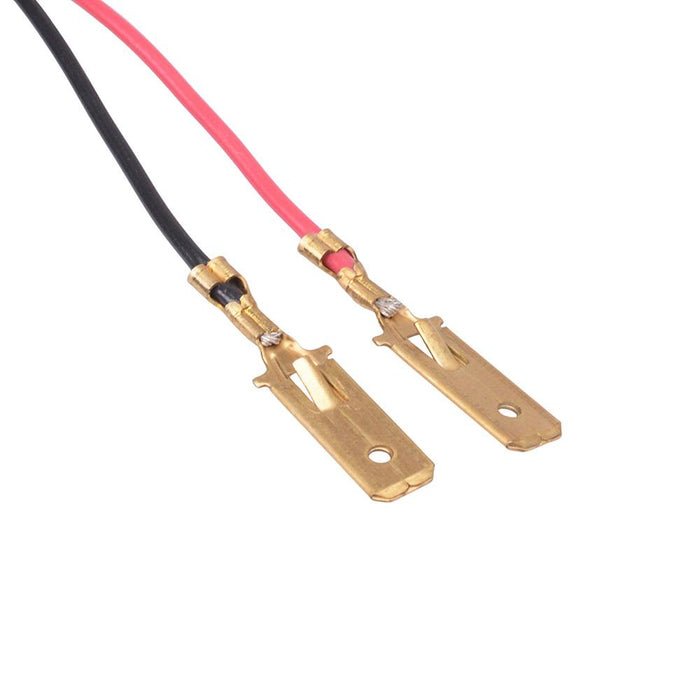

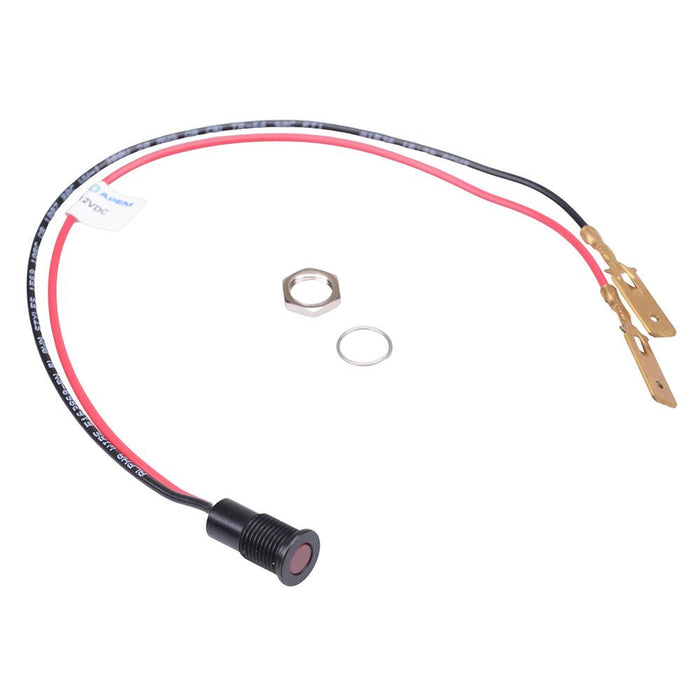

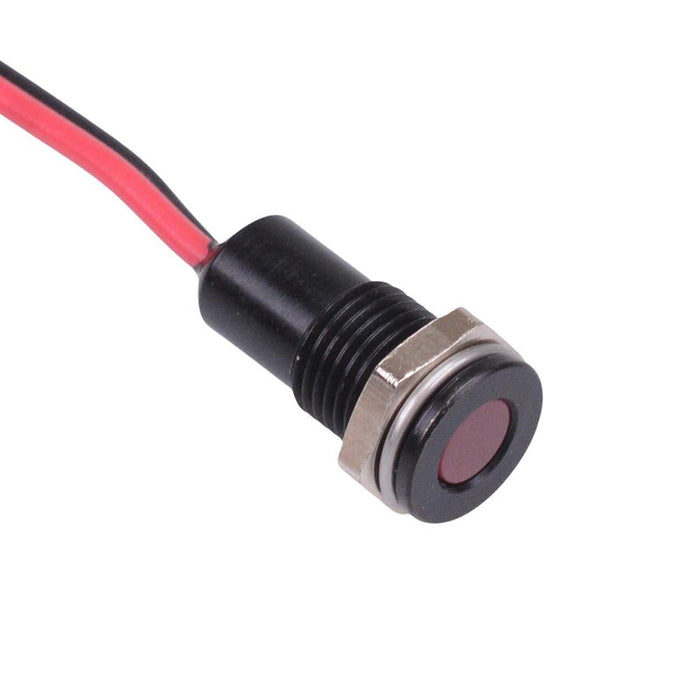

The Q8F5BXXR12-SP1-X0200 is a red panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out. The indicator features a flush black plated brass bezel and rear epoxy sealed 200mm tail wires with 6.35mm terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 8mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 8mcd Operating voltage: 10.8 to 13.2VDC Bezel material: black plated brass Terminal type: rear epoxy 200mm wires with 6.3mm terminals Length: 15.6mm Diameter: 9.5mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 9.5mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 15.6mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Voltage Rating | 12VDC |
