Q8F1BZZRYG28 Red / Green / Yellow Flush 8mm 28VDC LED Panel Indicator APEM
by APEM
SKU 492664
MPN: Q8F1BZZRYG28
Availability:
25 in stock
Original price
£7.22
-
Original price
£7.22
Original price
£7.22
£7.58
£7.58
-
£7.58
Current price
£7.58

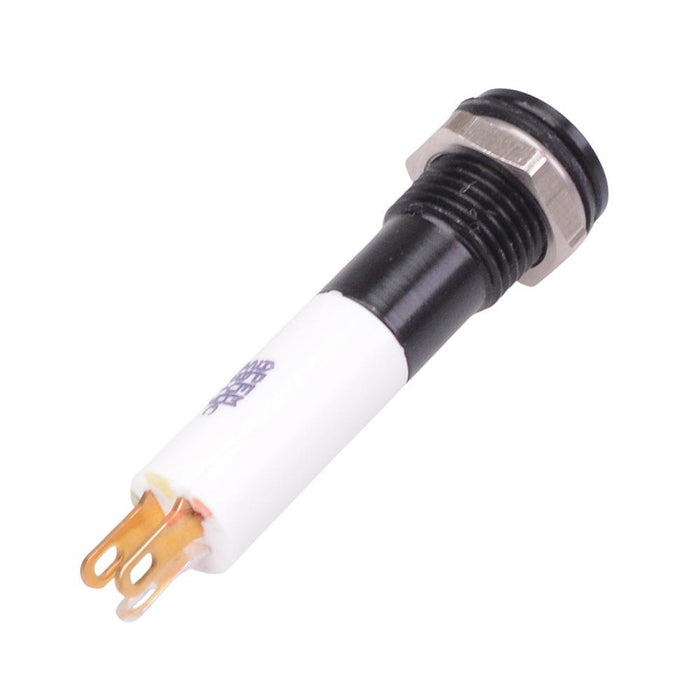

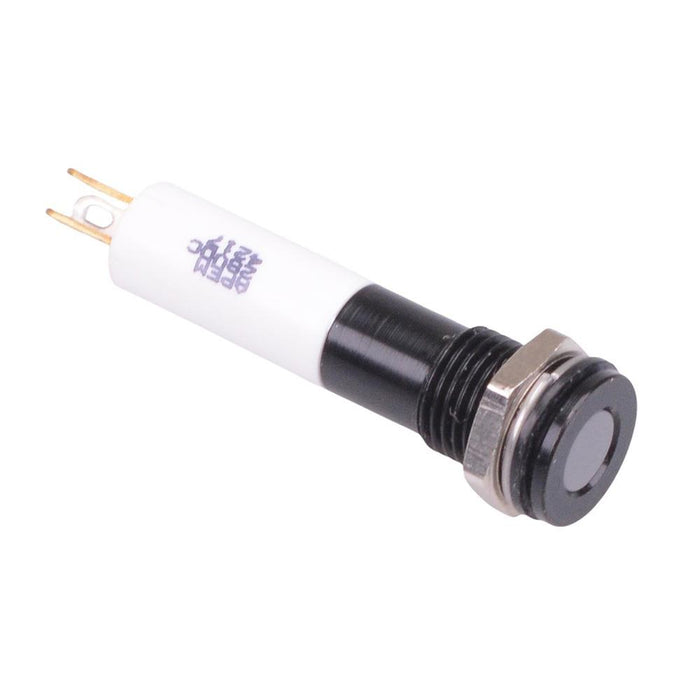

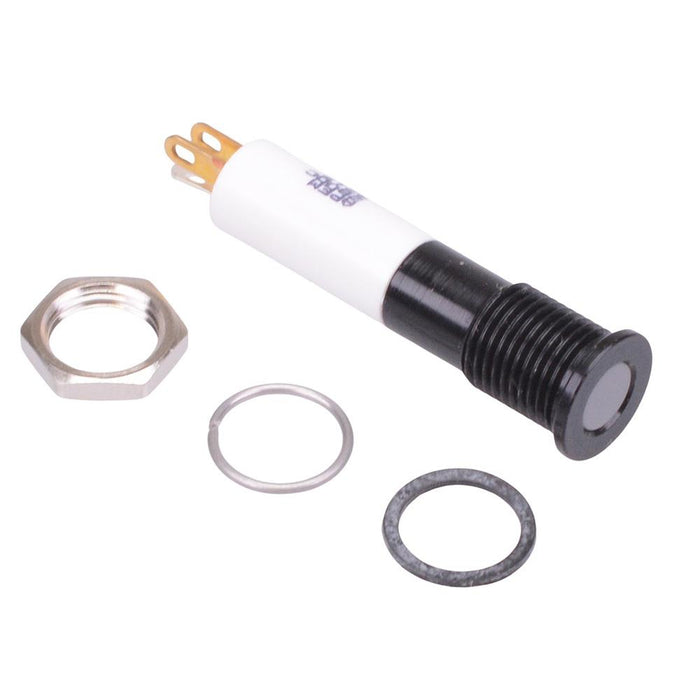

The Q8F1BZZRYG28 is a tri-colour red green yellow panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out. The indicator features a flush black plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red / green / yellow Panel cut-out: 8mm Voltage rating: 28VDC Current rating: 20mA Panel thickness: 7mm max Brightness: red 15mcd, green 10mcd, yellow 6mcd Operating voltage: 25.2 to 30.8VDC Bezel material: black plated brass Terminal type: quick connect / solder 2.8 x 0.8mm Length: 33.85mm Diameter: 9.4mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red / Green / Yellow |
| Diameter | 9.4mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 33.85mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 8mm |
| Panel Thickness | 7mm Max |
| Voltage Rating | 28VDC |
