Q6R7CXXB12E Blue Recessed 6mm 12VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492663
MPN: Q6R7CXXB12E
Availability:
25 in stock
Original price
£7.08
-
Original price
£7.08
Original price
£7.08
£7.08
£7.08
-
£7.08
Current price
£7.08

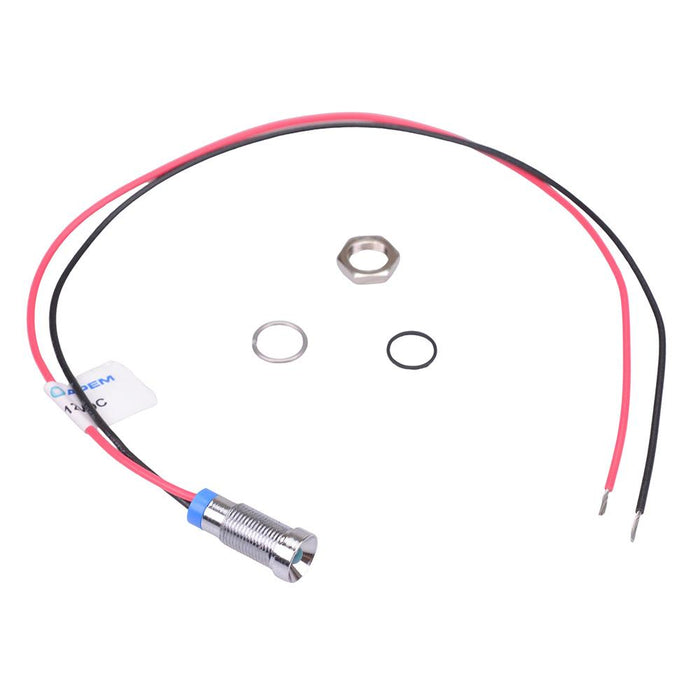

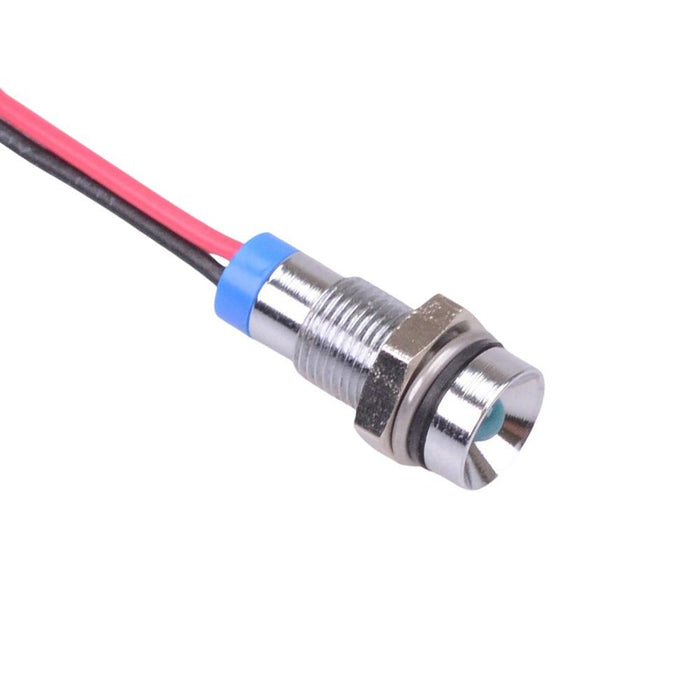

The Q6R7CXXB12E is a blue panel mount LED indicator from the APEM Q6 series, featuring a 6mm cut-out and sealed to IP67. The indicator features a recessed chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: blue Panel cut-out: 6mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 1200mcd Operating voltage: 10.8 to 13.2VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: 200mm wires Length: 15.9mm Diameter: 6.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Blue |
| Diameter | 6.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 15.9mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
