Q6R5BXXY24E-X0781 Yellow Recessed 6mm 24VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492662
MPN: Q6R5BXXY24E-X0781
Availability:
121 in stock
Original price
£6.36
-
Original price
£6.36
Original price
£6.36
£6.36
£6.36
-
£6.36
Current price
£6.36

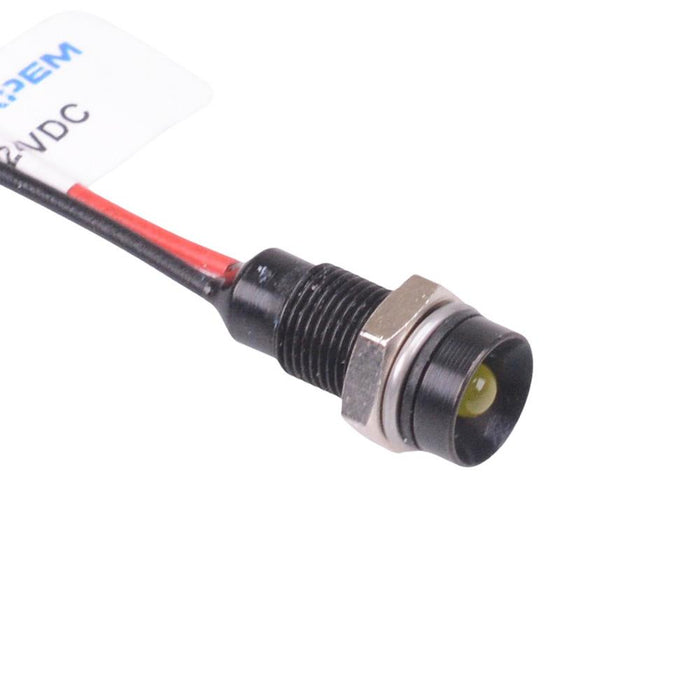

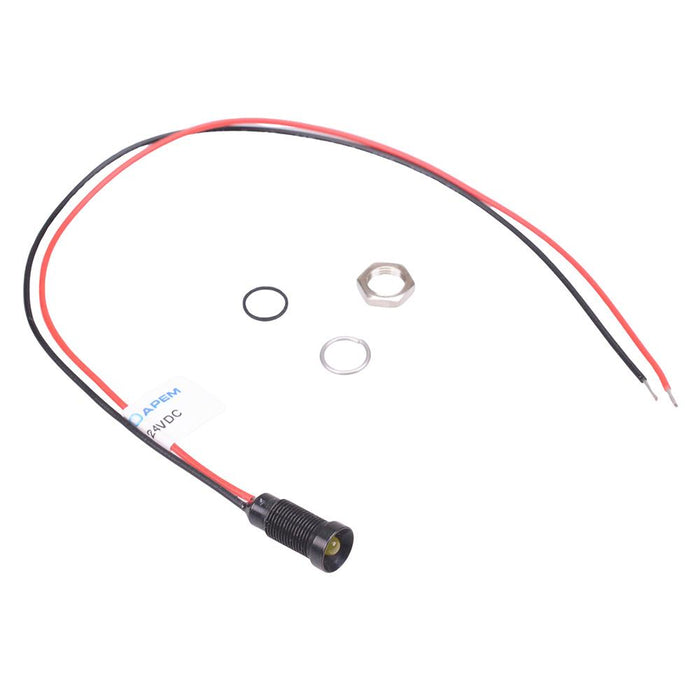

The Q6R5BXXY24E-X0781 is a yellow panel mount LED indicator from the APEM Q6 series, featuring a 6mm cut-out and sealed to IP67. The indicator features a recessed black plated brass bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 6mm Voltage rating: 24VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 30mcd Operating voltage: 21.6 to 26.4VDC Bezel material: black plated brass Protection level: IP67 Terminal type: rear epoxy 200mm wires Fitted with 2K2 resistor Length: 13.5mm Diameter: 6.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 6.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 13.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24VDC |
