Q6P7BXXR06E Red Prominent 6mm 6VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492658
MPN: Q6P7BXXR06E
Availability:
22 in stock
Original price
£6.53
-
Original price
£6.53
Original price
£6.53
£6.53
£6.53
-
£6.53
Current price
£6.53

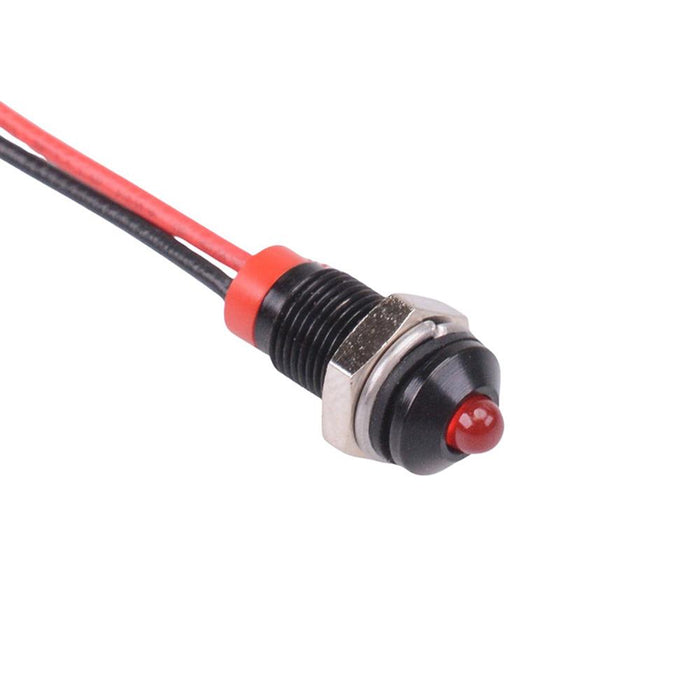

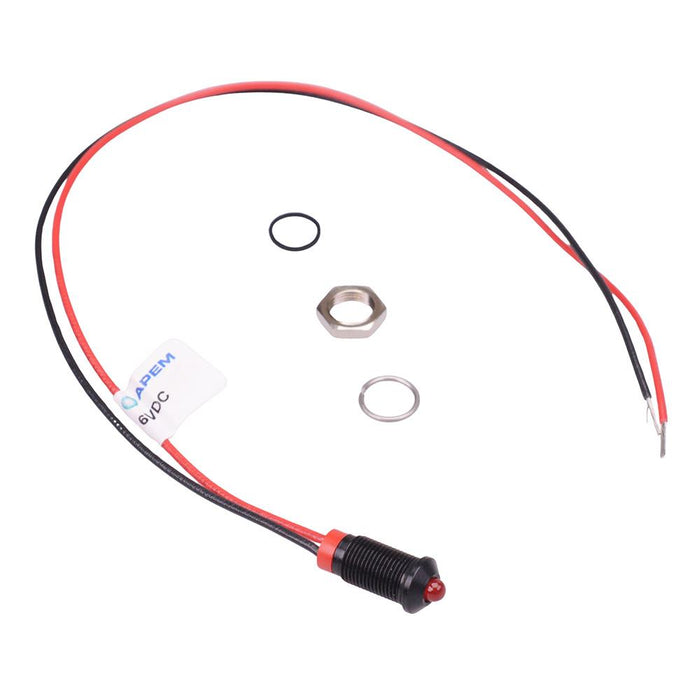

The Q6P7BXXR06E is a red panel mount LED indicator from the APEM Q6 series, featuring a 6mm cut-out and sealed to IP67. The indicator features a prominent black plated brass bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 6mm Voltage rating: 6VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 40mcd Operating voltage: 5.4 to 6.6VDC Bezel material: black plated brass Protection level: IP67 Terminal type: 200mm wires Length: 15.5mm Diameter: 6.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 6.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 15.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 6VDC |
