Q6F7GXXHY02E Hyper Bright Yellow Flush 6mm 2VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492656
MPN: Q6F7GXXHY02E
Availability:
49 in stock
Original price
£6.40
-
Original price
£6.40
Original price
£6.40
£6.40
£6.40
-
£6.40
Current price
£6.40

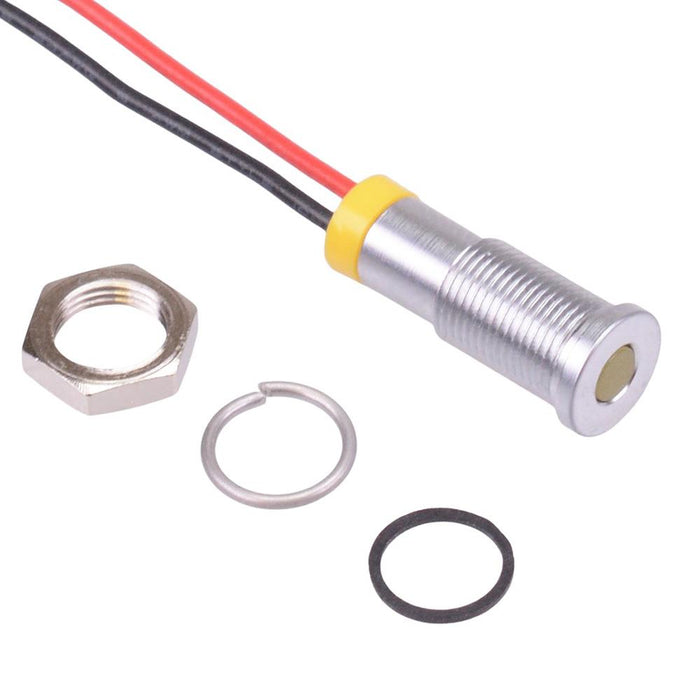

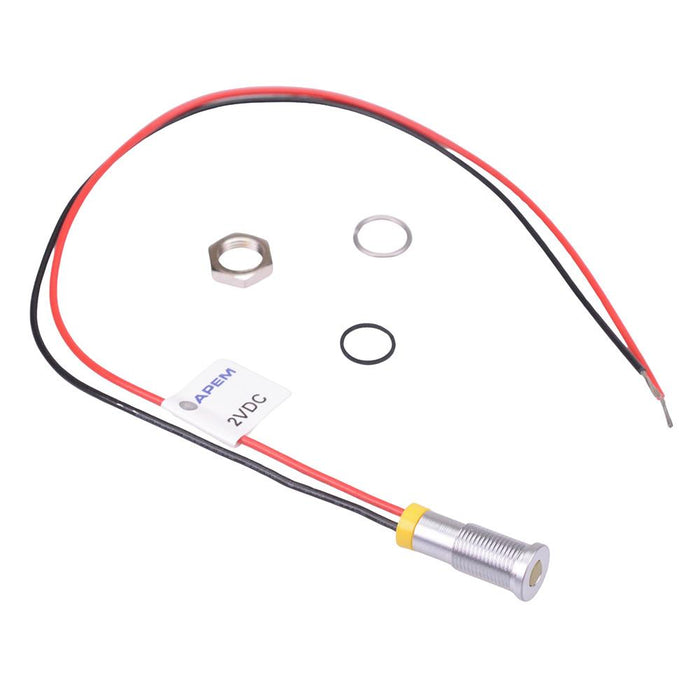

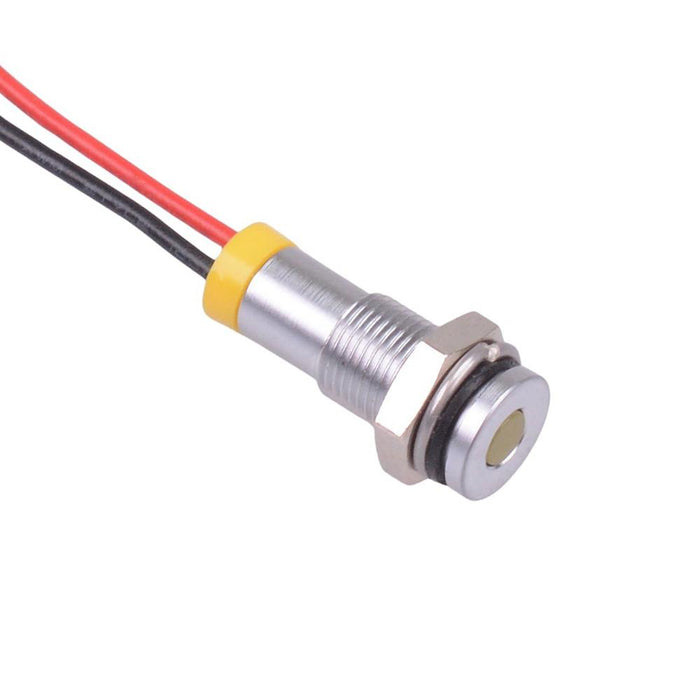

The Q6F7GXXHY02E is a hyper bright yellow panel mount LED indicator from the APEM Q6 series, featuring a 6mm cut-out and sealed to IP67. The indicator features a flush satin grey anodized aluminium bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 6mm Voltage rating: 2VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 2180mcd Operating voltage: 1.8 to 3.3VDC Bezel material: satin grey plated brass Protection level: IP67 Terminal type: 200mm wires Length: 16.9mm Diameter: 6.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 6.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 16.9mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 2VDC |
