Q6F7CXXG02 Green Flush 6mm 2.1VDC LED Panel Indicator APEM
by APEM
SKU 492652
MPN: Q6F7CXXG02
Availability:
50 in stock
Original price
£6.59
-
Original price
£6.59
Original price
£6.59
£6.59
£6.59
-
£6.59
Current price
£6.59

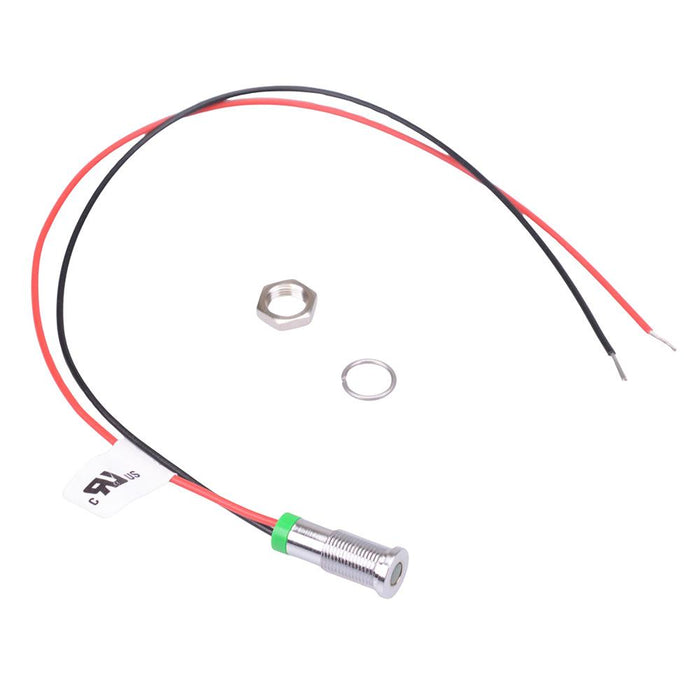

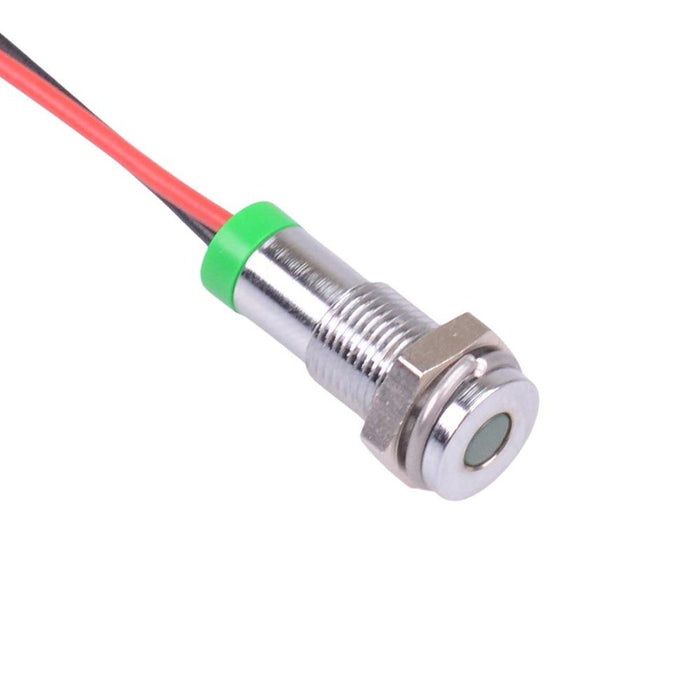

The Q6F7CXXG02 is a green panel mount LED indicator from the APEM Q6 series, featuring a 6mm cut-out. The indicator features a flush chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 6mm Voltage rating: 2.1VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 45mcd Operating voltage: 1.8 to 3.3VDC Bezel material: chrome plated brass Terminal type: 200mm wires Length: 16.9mm Diameter: 6.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 6.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 16.9mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 7mm Max |
| Voltage Rating | 2.1VDC |
