Q6F5CXXO12E Orange Flush 6mm 12VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492650
MPN: Q6F5CXXO12E
Availability:
49 in stock
Original price
£6.17
-
Original price
£6.17
Original price
£6.17
£6.17
£6.17
-
£6.17
Current price
£6.17

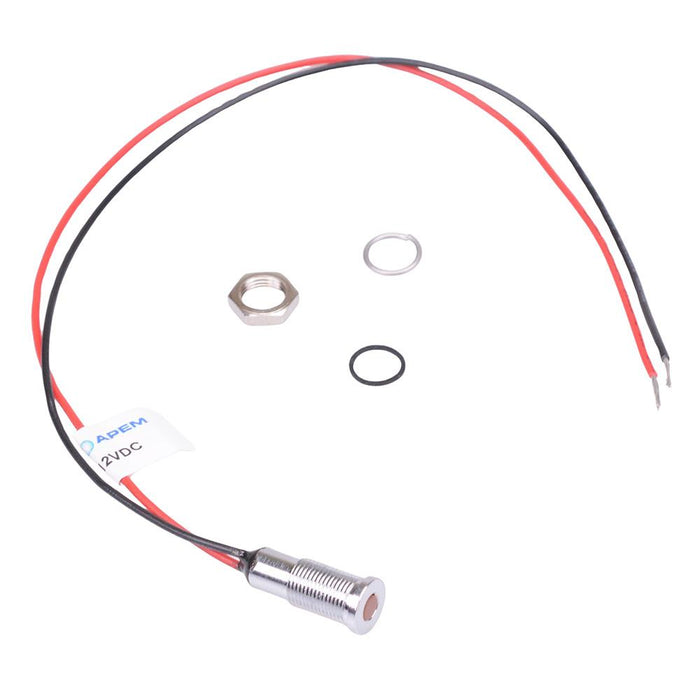

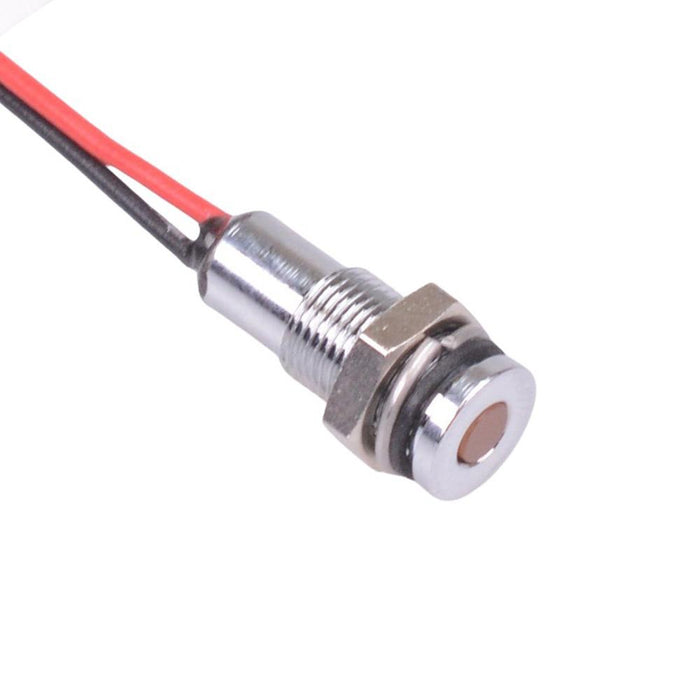

The Q6F5CXXO12E is a orange panel mount LED indicator from the APEM Q6 series, featuring a 6mm cut-out and sealed to IP67. The indicator features a flush chrome bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: orange Panel cut-out: 6mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 10mcd Operating voltage: 10.8 to 13.2VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 14.9mm Diameter: 6.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Orange |
| Diameter | 6.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 14.9mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
