Q6F3BXXY28E Yellow Flush 6mm 28VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492648
MPN: Q6F3BXXY28E
Availability:
488 in stock
Original price
£4.94
-
Original price
£4.94
Original price
£4.94
£4.94
£4.94
-
£4.94
Current price
£4.94

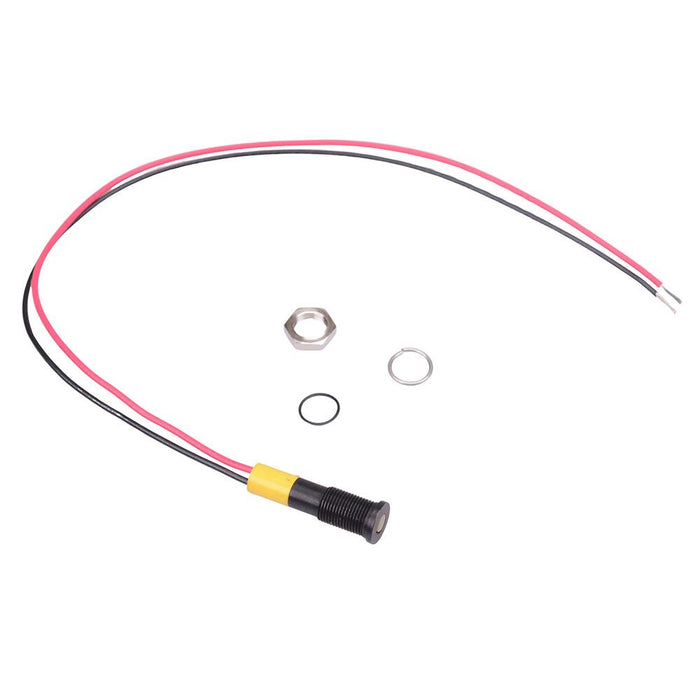

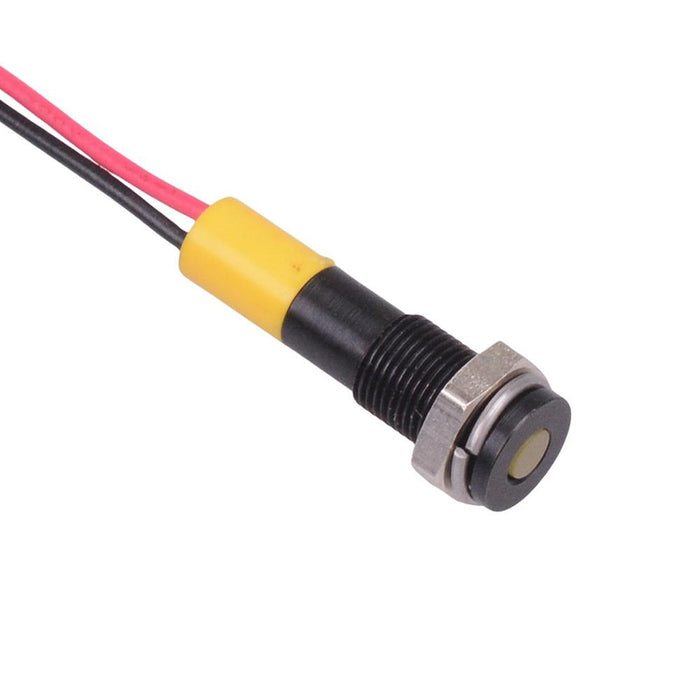

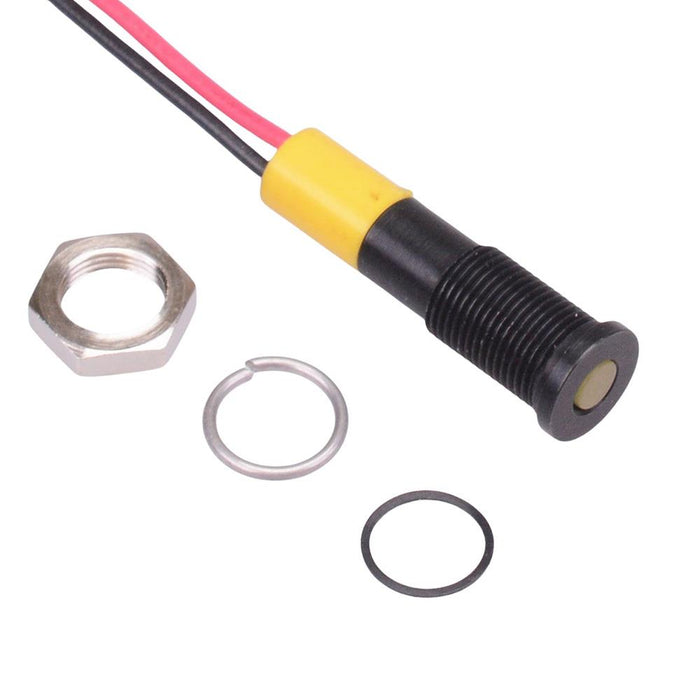

The Q6F3BXXY28E is a yellow panel mount LED indicator from the APEM Q6 series, featuring a 6mm cut-out and sealed to IP67. The indicator features a flush black plated brass bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 6mm Voltage rating: 28VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 100mcd Operating voltage: 25.2 to 30.8VDC Bezel material: black plated brass Protection level: IP67 Terminal type: 200mm wires Length: 22mm Diameter: 6.9mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 6.9mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 22mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 6mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 28VDC |
