Q22Y5AGXXSG24E Super Bright Green Chamfered 22mm 24VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492643
MPN: Q22Y5AGXXSG24E
Availability:
37 in stock
Original price
£28.98
-
Original price
£28.98
Original price
£28.98
£28.98
£28.98
-
£28.98
Current price
£28.98

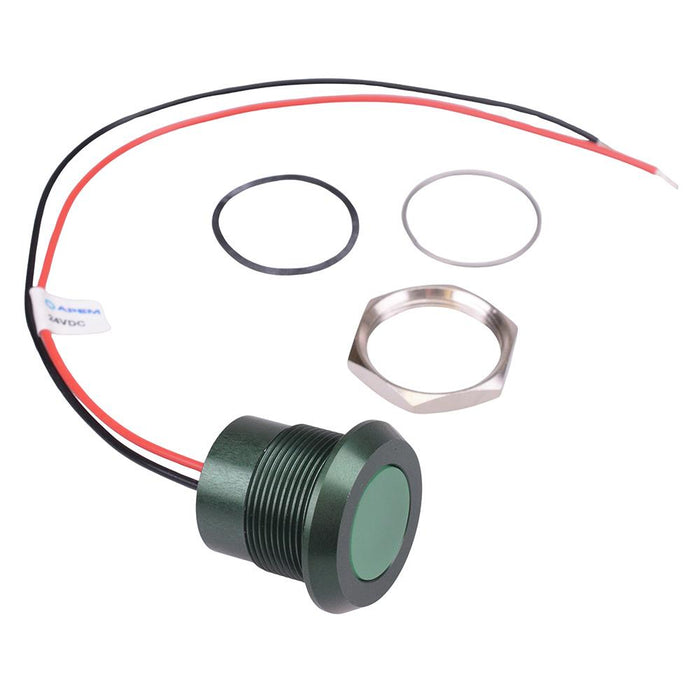

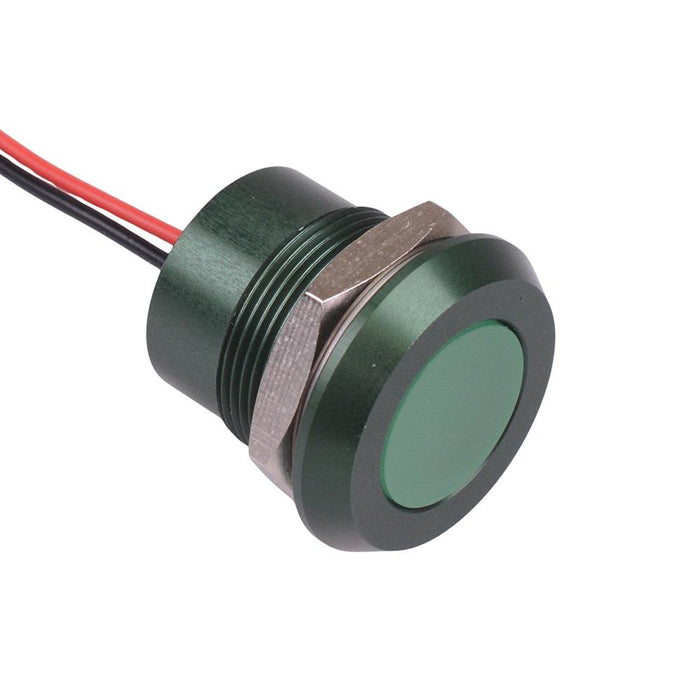

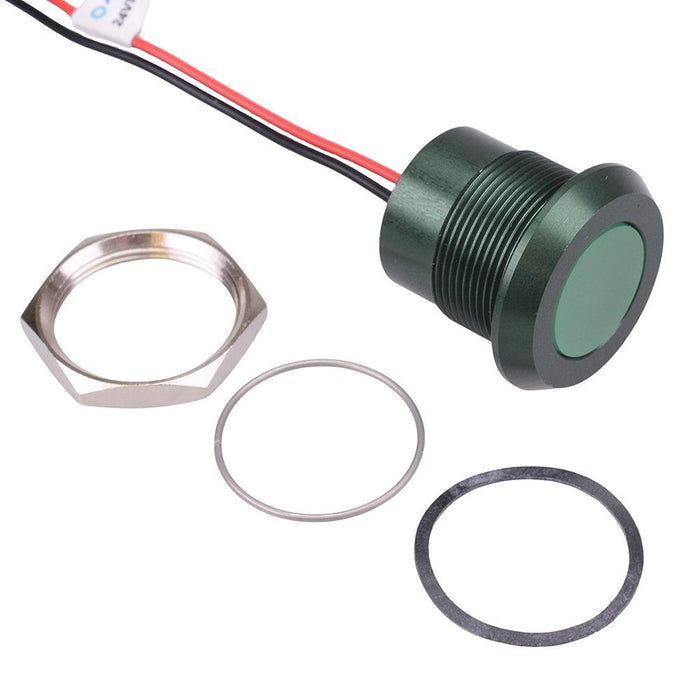

The Q22Y5AGXXSG24E is a super bright green panel mount LED indicator from the APEM Q22 series, featuring a 22mm cut-out and sealed to IP67. The indicator features a chamfered green anodized aluminium bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 22mm Voltage rating: 24VDC Current rating: 40mA Panel thickness: 10mm max Brightness: 245mcd Operating voltage: 21.6 to 26.4VDC Bezel material: green anodized aluminium Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 24.5mm Diameter: 28mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 28mm |
| Forward Current | 40mA |
| Lamp Type | LED |
| Length | 24.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 10mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24VDC |
