Q22P1CXXR2436EDL Red Prominent 22mm 24-36VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492641
MPN: Q22P1CXXR2436EDL
Availability:
38 in stock
Original price
£19.84
-
Original price
£19.84
Original price
£19.84
£19.84
£19.84
-
£19.84
Current price
£19.84

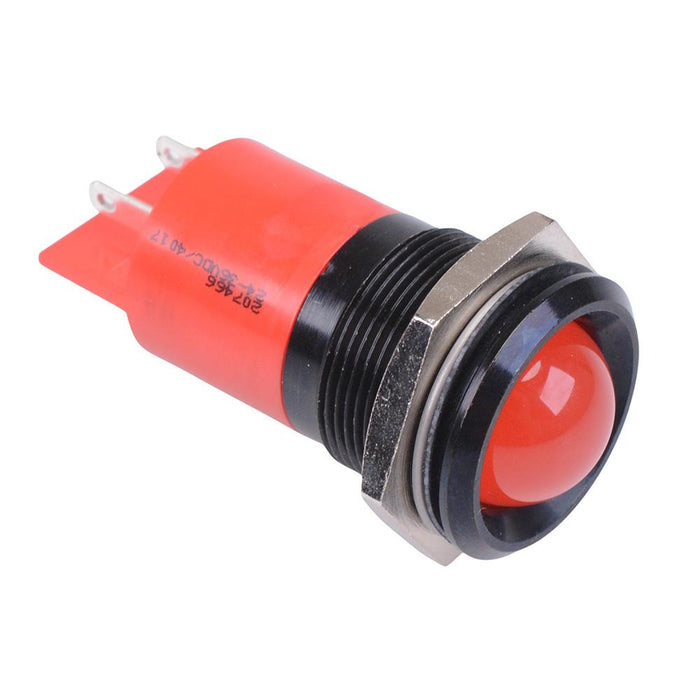

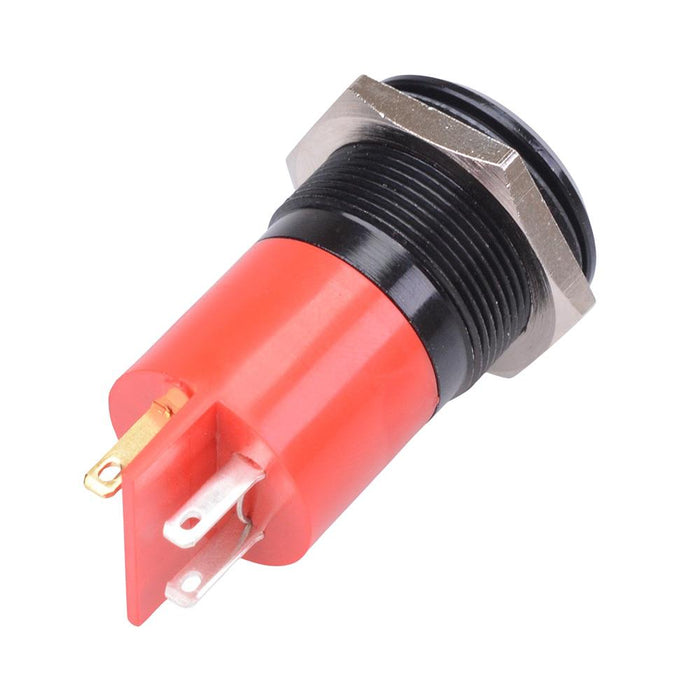

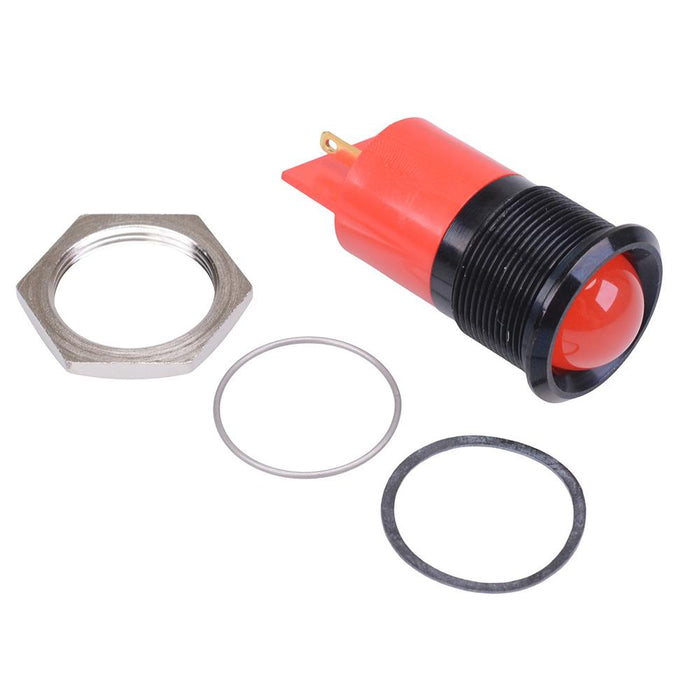

The Q22P1CXXR2436EDL is a red panel mount LED indicator from the APEM Q22 series, featuring a 22mm cut-out and sealed to IP67. The indicator features a prominent black metal bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 22mm Voltage rating: 24-36VDC Current rating: 40mA Panel thickness: 12mm max Brightness: 82mcd Bezel material: black plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 41.5mm Diameter: 25mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 |
| Colour | Red |
| Diameter | 25mm |
| Forward Current | 40mA |
| Lamp Type | LED |
| Length | 41.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 12mm Max |
| Protection Level | IP67 |
| Voltage Rating | 24-36VDC |
