Q22FP1BPZZRYG12 Red / Green / Yellow Flush 22mm 12VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492638
MPN: Q22FP1BPZZRYG12
Availability:
65 in stock
Original price
£16.09
-
Original price
£16.09
Original price
£16.09
£16.09
£16.09
-
£16.09
Current price
£16.09

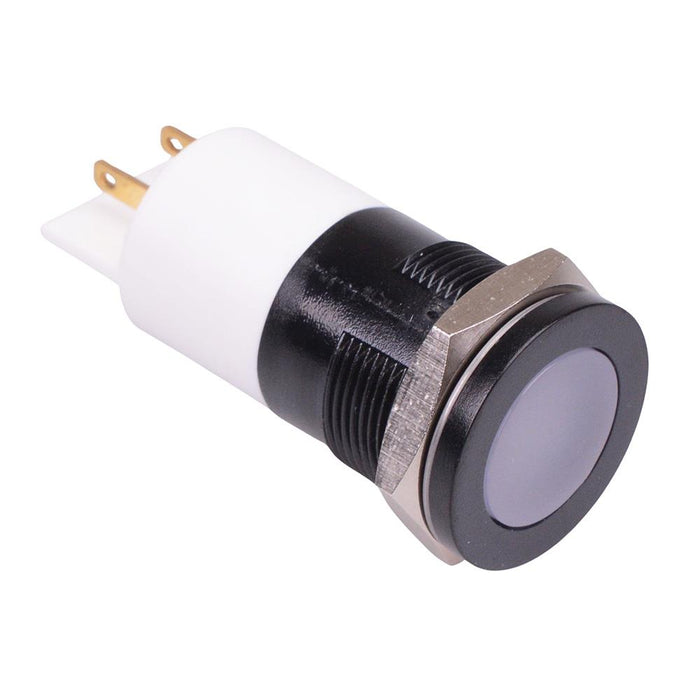

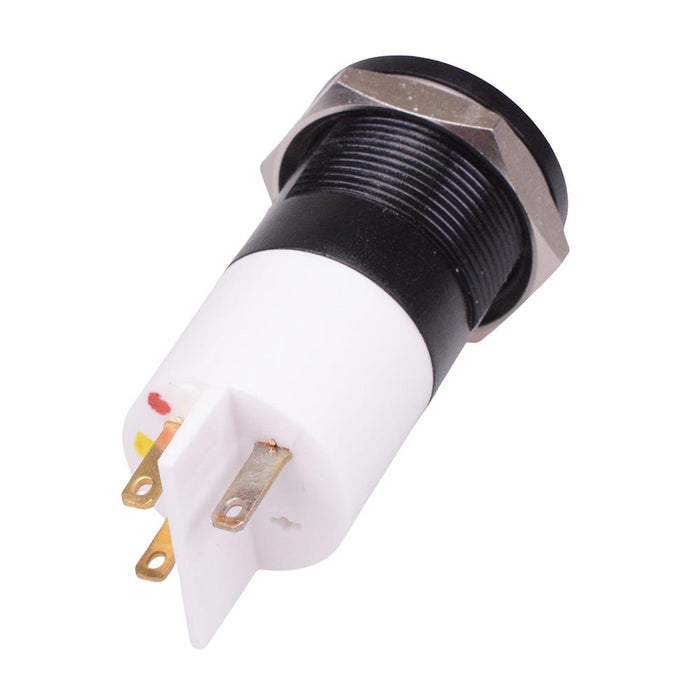

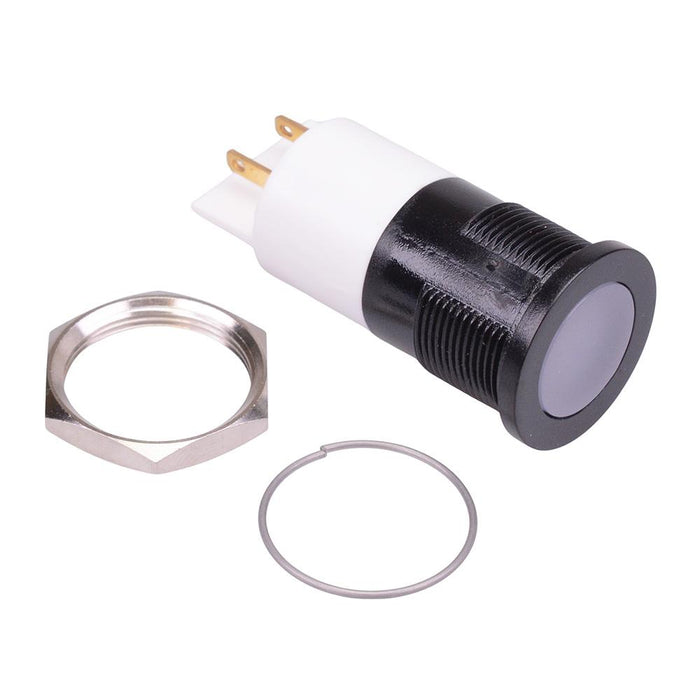

The Q22FP1BPZZRYG12 is a tri-colour red green yellow panel mount LED indicator from the APEM Q22 series, featuring a 22mm cut-out. The indicator features a prominent black plastic bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red / green / yellow Panel cut-out: 22mm Voltage rating: 12VDC Current rating: 40mA Panel thickness: 10mm max Brightness: red 80mcd, green 50mcd, yellow 50mcd Operating voltage: 10.8 to 13.2VDC Bezel material: black plastic Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red / Green / Yellow |
| Diameter | 25mm |
| Forward Current | 40mA |
| Lamp Type | LED |
| Length | 41.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 10mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
