Q22F7CXXY24E Yellow Flush 22mm 12VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492636
MPN: Q22F7CXXY24E
Availability:
25 in stock
Original price
£14.65
-
Original price
£14.65
Original price
£14.65
£14.65
£14.65
-
£14.65
Current price
£14.65

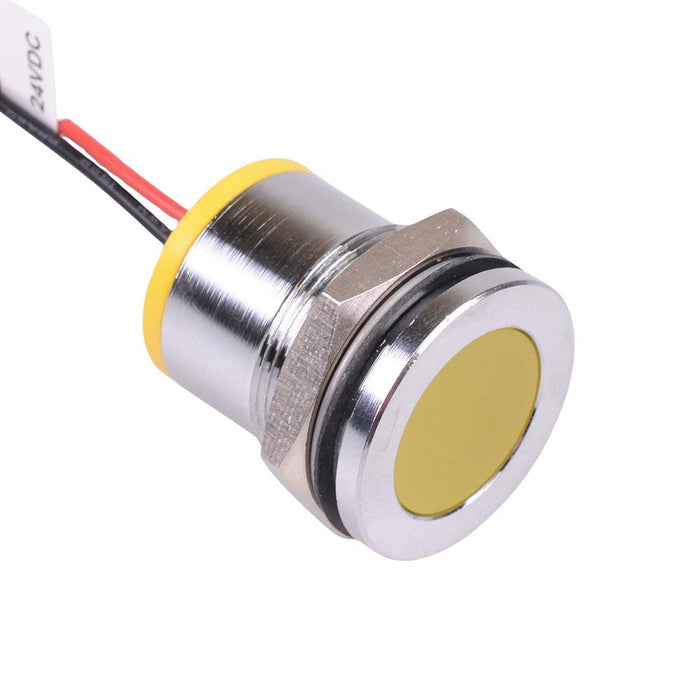

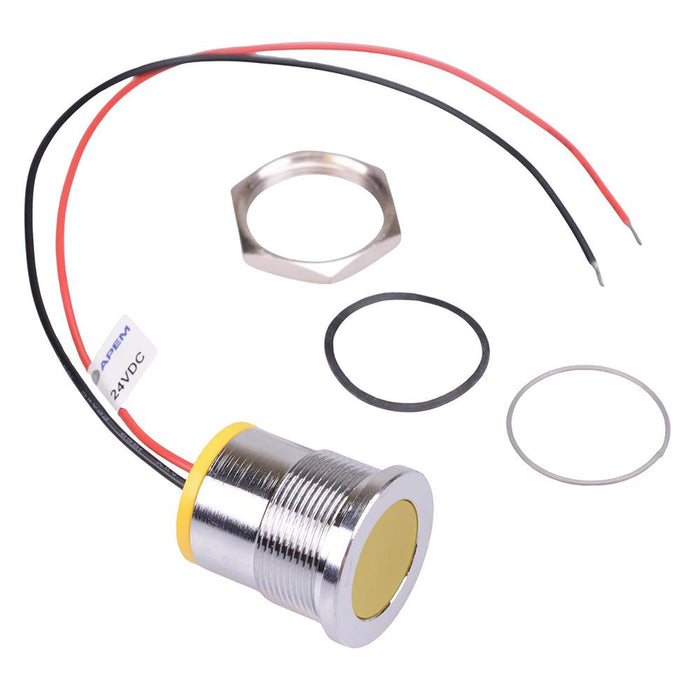

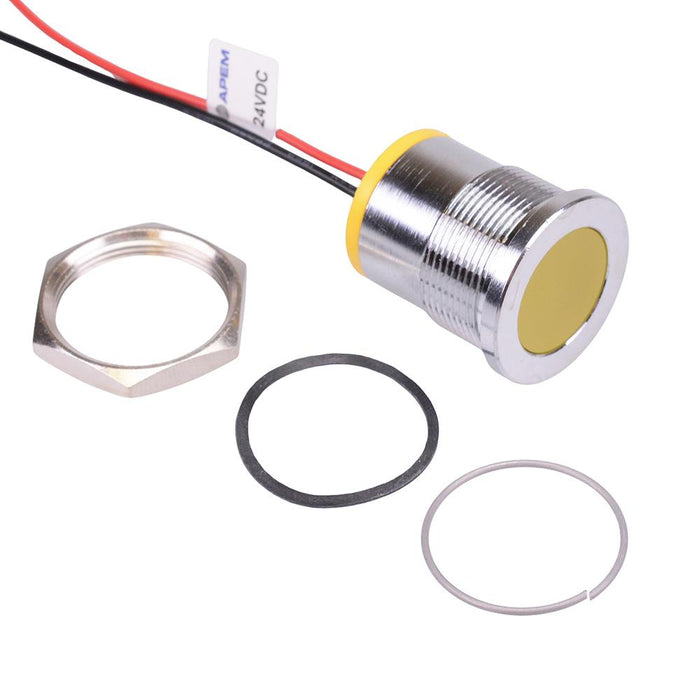

The Q22F7CXXY24E is a yellow panel mount LED indicator from the APEM Q22 series, featuring a 22mm cut-out and sealed to IP67. The indicator features a flush chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 22mm Voltage rating: 12VDC Current rating: 40mA Panel thickness: 10mm max Brightness: 59mcd Operating voltage: 10.8 to 13.2VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: 200mm wires Length: 26.5mm Diameter: 25mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 25mm |
| Forward Current | 40mA |
| Lamp Type | LED |
| Length | 26.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 10mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
