Q16P1CXXY130E Yellow Prominent 16mm 130VAC LED Panel Indicator IP67 APEM
by APEM
SKU 492623
MPN: Q16P1CXXY130E
Availability:
30 in stock
Original price
£9.84
-
Original price
£9.84
Original price
£9.84
£10.33
£10.33
-
£10.33
Current price
£10.33

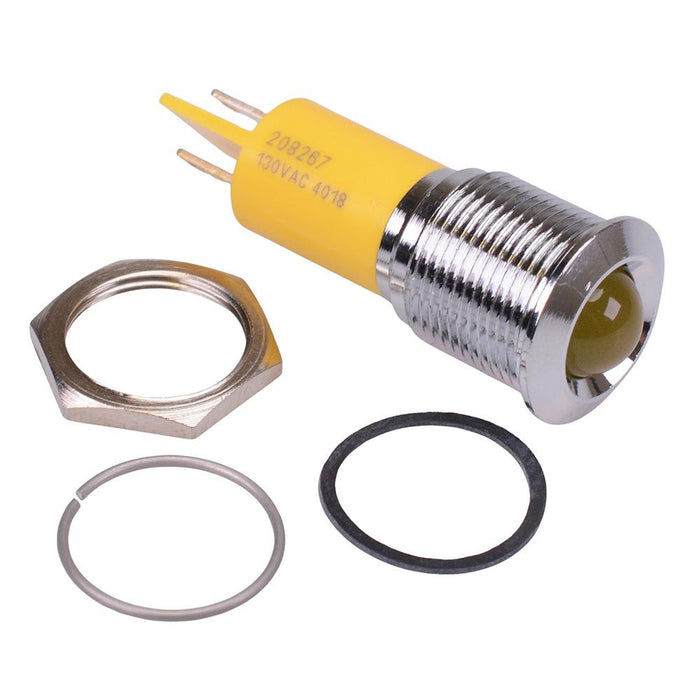

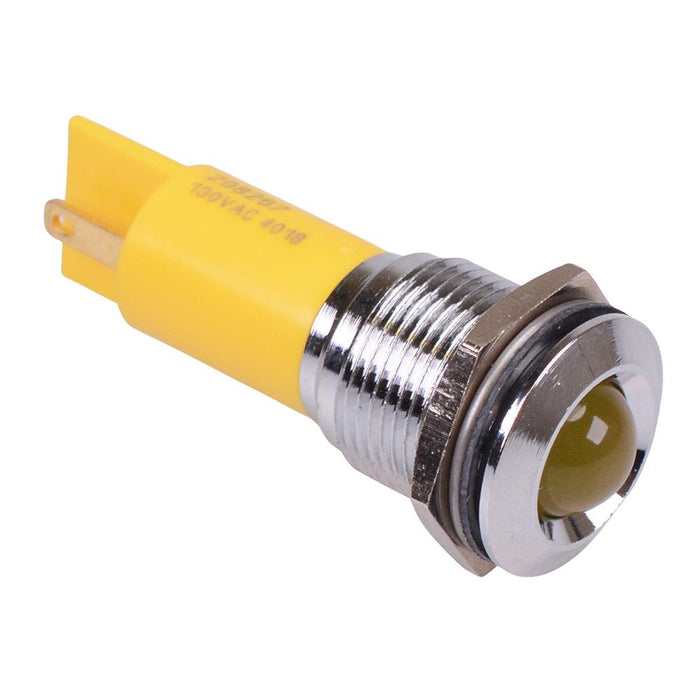

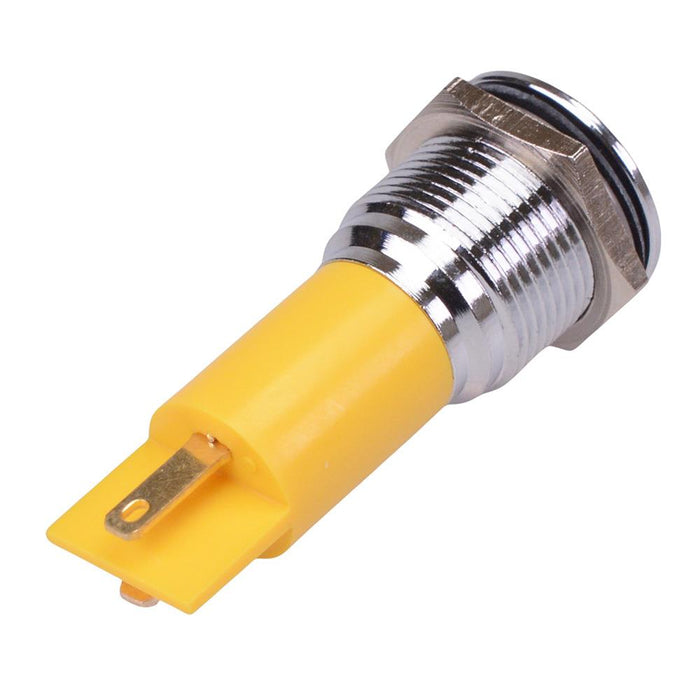

The Q16P1CXXY130E is a yellow panel mount LED indicator from the APEM Q16 series, featuring a 16mm cut-out and sealed to IP67. The indicator features a prominent chrome bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 16mm Voltage rating: 130VAC Current rating: 6mA Panel thickness: 11mm max Brightness: 500mcd Bezel material: chrome plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 33.5mm Diameter: 18.3mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 18.3mm |
| Forward Current | 6mA |
| Lamp Type | LED |
| Length | 33.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 130VAC |
