Q16P1BXXHG110E Hyper Bright Green Prominent 16mm 110VAC LED Panel Indicator IP67 APEM
by APEM
SKU 492620
MPN: Q16P1BXXHG110E
Availability:
15 in stock
Original price
£11.42
-
Original price
£11.42
Original price
£11.42
£11.42
£11.42
-
£11.42
Current price
£11.42

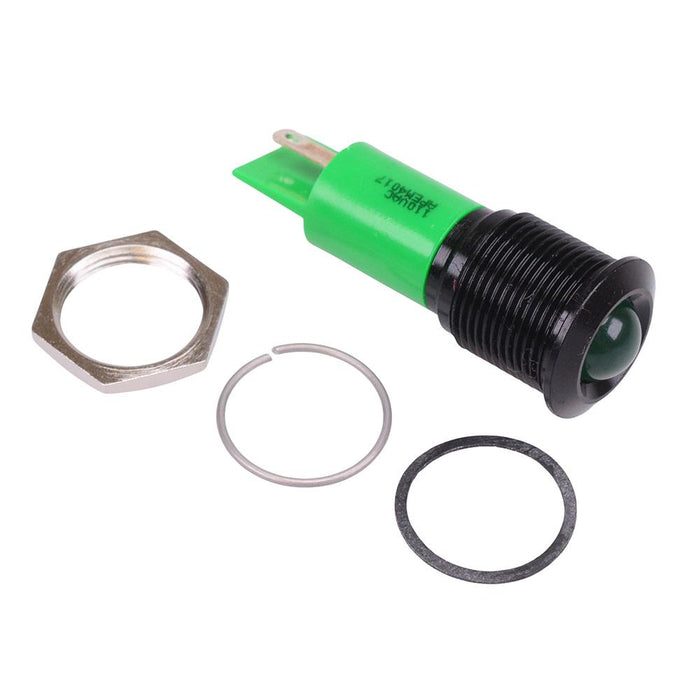

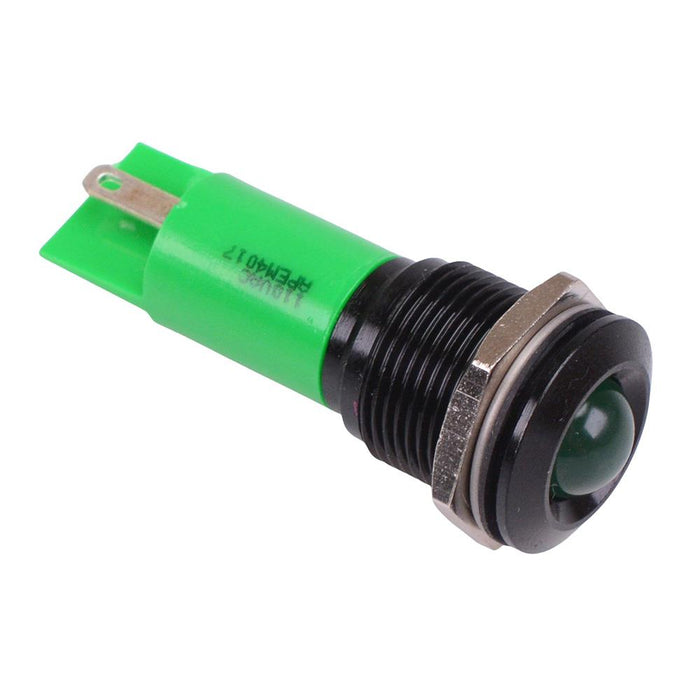

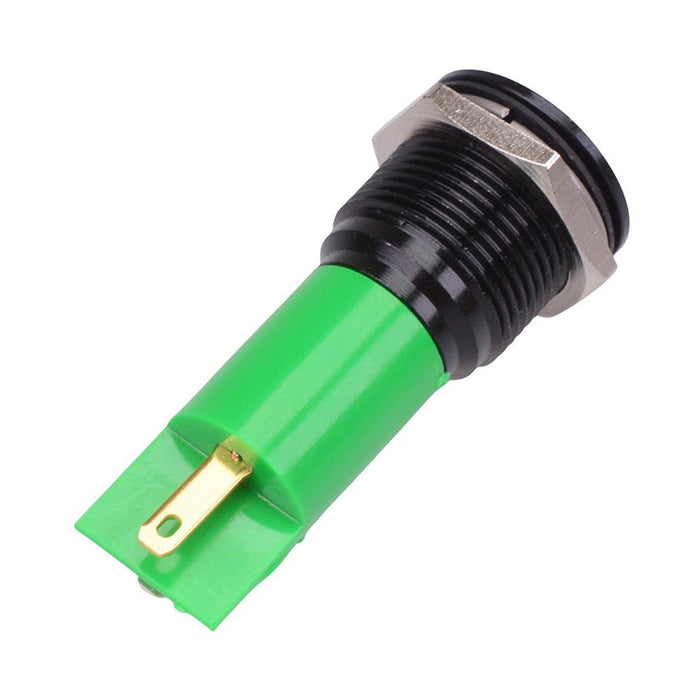

The Q16P1BXXHG110E is a hyper bright green panel mount LED indicator from the APEM Q16 series, featuring a 16mm cut-out and sealed to IP67. The indicator features a prominent black plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 16mm Voltage rating: 110VAC Current rating: 6mA Panel thickness: 11mm max Brightness: 2200mcd Operating voltage: 99 to 121VAC Bezel material: black plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 33.5mm Diameter: 18.3mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 18.3mm |
| Forward Current | 6mA |
| Lamp Type | LED |
| Length | 33.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 110VAC |
