Q14P7CXXR12-X0012 Red Prominent 14mm 12VDC LED Panel Indicator APEM
by APEM
SKU 492614
MPN: Q14P7CXXR12-X0012
Availability:
76 in stock
Original price
£8.22
-
Original price
£8.22
Original price
£8.22
£8.22
£8.22
-
£8.22
Current price
£8.22

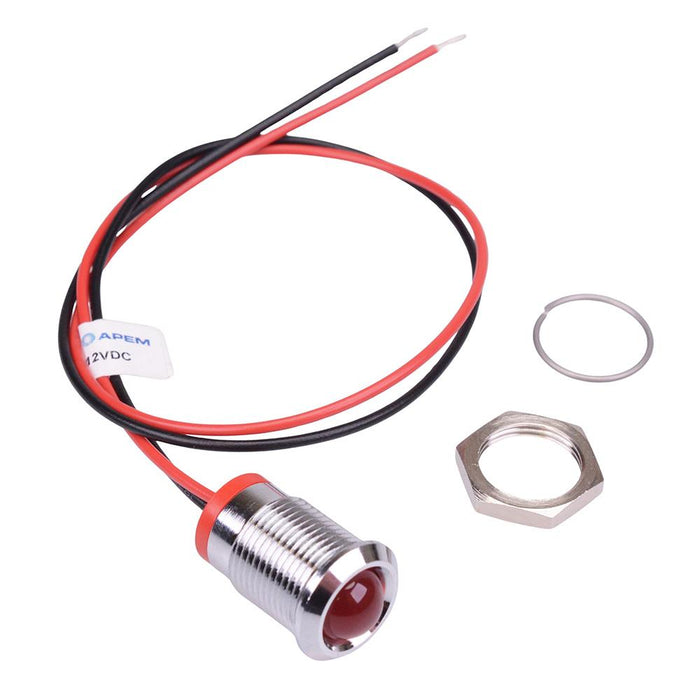

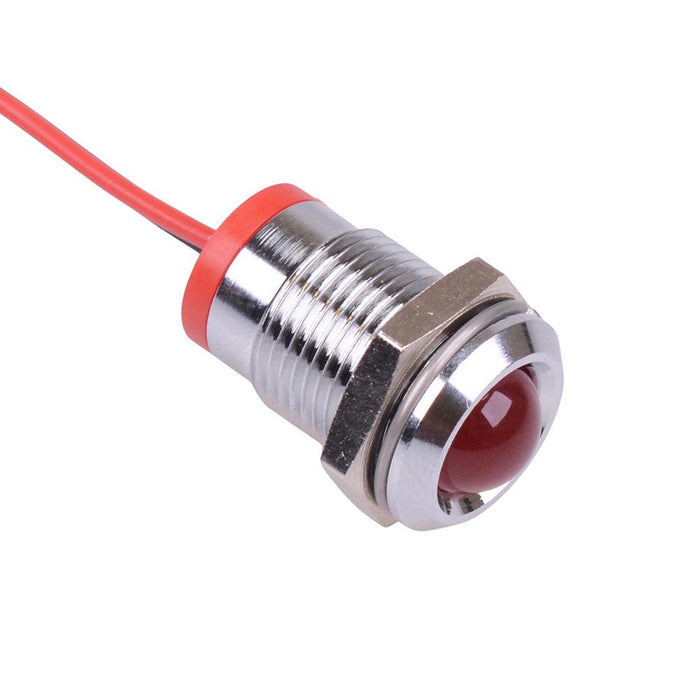

The Q14P7CXXR12-X0012 is a red panel mount LED indicator from the APEM Q14 series, featuring a 14mm cut-out. The indicator features a prominent chrome bezel and 300mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: red Panel cut-out: 14mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 11mm max Brightness: 330mcd Operating voltage: 10.8 to 13.2VDC Bezel material: chrome plated brass Terminal type: 200mm wires Length: 24.5mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 24.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Voltage Rating | 12VDC |
