Q14P5CXXHO12E Hyper Bright Orange Prominent 14mm 12VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492610
MPN: Q14P5CXXHO12E
Availability:
67 in stock
Original price
£9.00
-
Original price
£9.00
Original price
£9.00
£9.00
£9.00
-
£9.00
Current price
£9.00

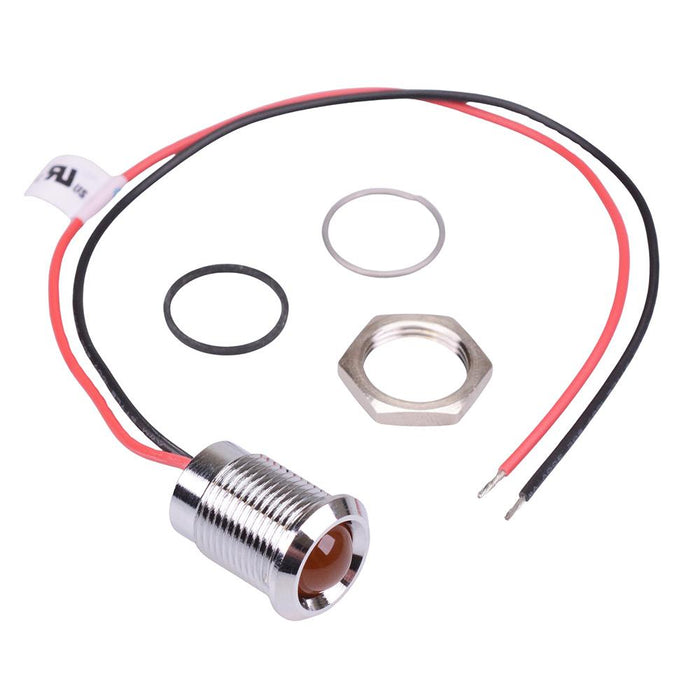

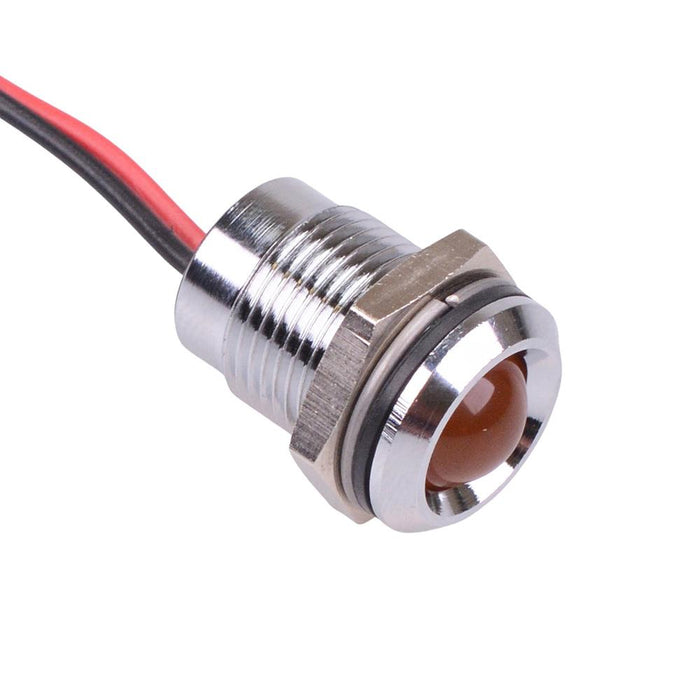

The Q14P5CXXHO12E is a hyper bright orange panel mount LED indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a prominent chrome bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: orange Panel cut-out: 14mm Voltage rating: 12VDC Current rating: 20mA Panel thickness: 11mm max Brightness: 850mcd Operating voltage: 10.8 to 13.2VDC Bezel material: chrome plated brass Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 24.75mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Orange |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 24.75mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
