Q14P1BXXHY220E Hyper Bright Yellow Prominent 14mm 220VAC LED Panel Indicator IP67 APEM
by APEM
SKU 492600
MPN: Q14P1BXXHY220E
Availability:
57 in stock
Original price
£8.52
-
Original price
£8.52
Original price
£8.52
£8.52
£8.52
-
£8.52
Current price
£8.52

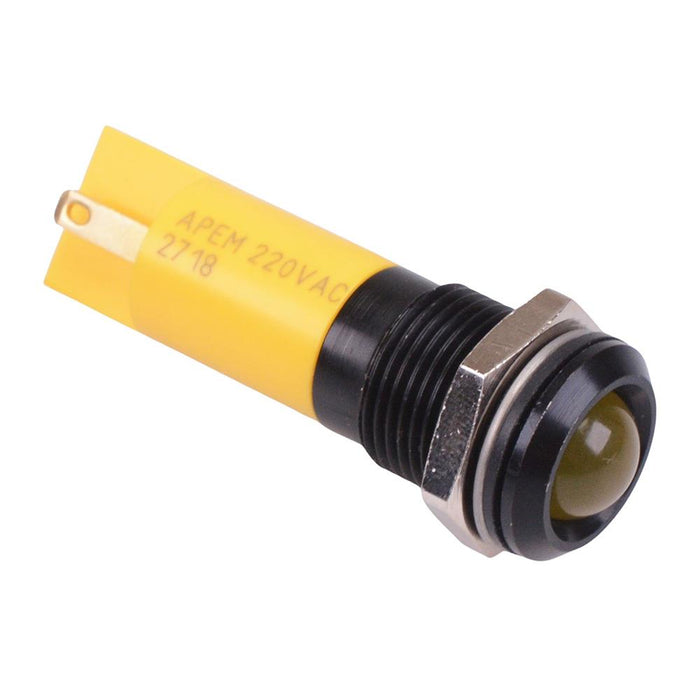

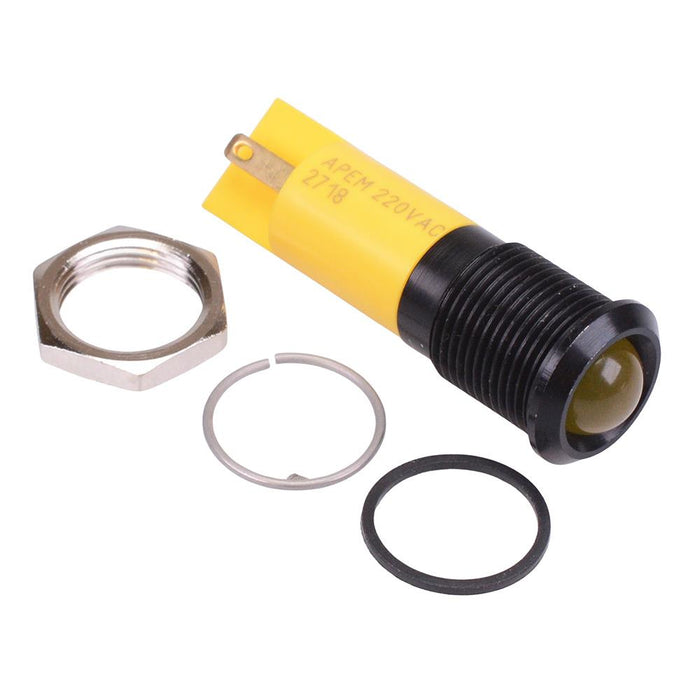

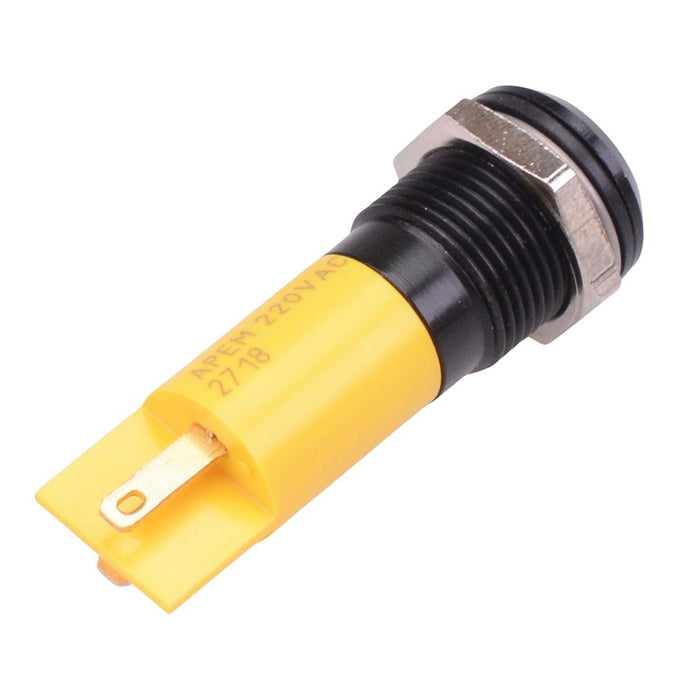

The Q14P1BXXHY220E is a hyper bright yellow panel mount LED indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a prominent black plated brass bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 14mm Voltage rating: 220VAC Current rating: 3mA Panel thickness: 11mm max Brightness: 1300mcd Operating voltage: 207 to 235VAC Bezel material: black plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 33.5mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 16mm |
| Forward Current | 3mA |
| Lamp Type | LED |
| Length | 33.5mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 220VAC |
