Q14F5BXXY12E-X0525 Yellow Flush 14mm 12VDC Panel Indicator IP67 APEM
by APEM
SKU 492593
MPN: Q14F5BXXY12E-X0525
Availability:
100 in stock
Original price
£8.17
-
Original price
£8.17
Original price
£8.17
£8.17
£8.17
-
£8.17
Current price
£8.17

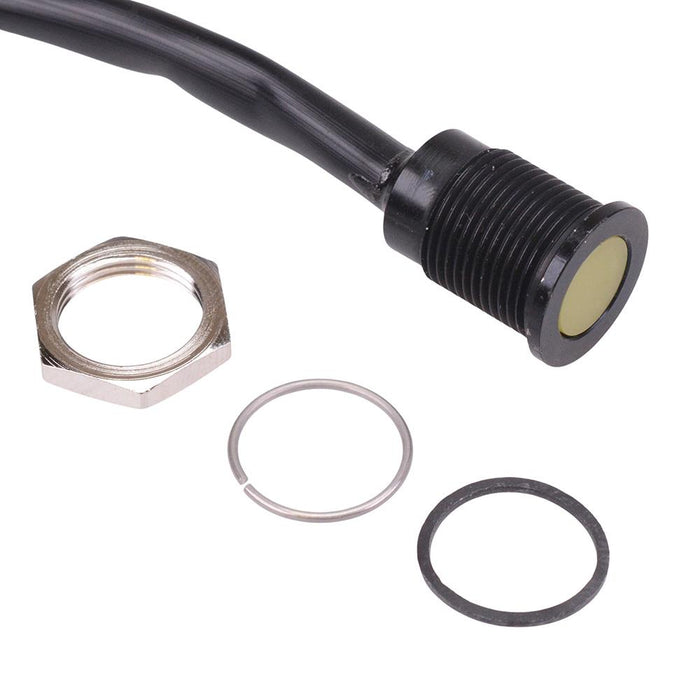

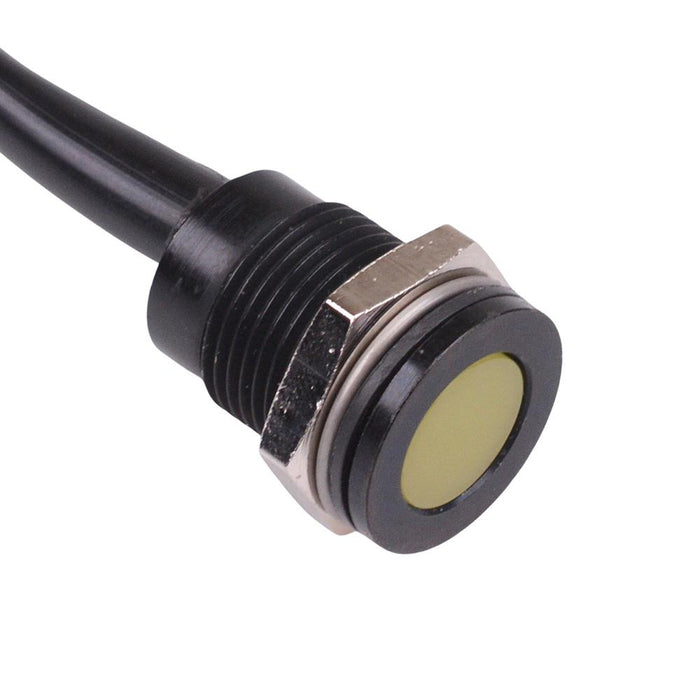

The Q14F5BXXY12E-X0525 is a yellow panel mount indicator from the APEM Q14 series, featuring a 14mm cut-out and sealed to IP67. The indicator features a flush black plated brass bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: yellow Panel cut-out: 14mm Voltage rating: 12VDC Panel thickness: 11mm max Brightness: 4mcd Operating voltage: 10.8 to 13.2VDC Bezel material: black plated brass Protection level: IP67 Terminal type: rear epoxy 200mm wires Length: 19.35mm Diameter: 16mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | Filament |
| Length | 19.35mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 14mm |
| Panel Thickness | 11mm Max |
| Protection Level | IP67 |
| Voltage Rating | 12VDC |
