Q12P3BXXSG30-60E Super Bright Green 12mm 30-60VDC LED Panel Indicator IP67 APEM
by APEM
SKU 492579
MPN: Q12P3BXXSG30-60E-X0100
Availability:
32 in stock
Original price
£10.98
-
Original price
£10.98
Original price
£10.98
£10.98
£10.98
-
£10.98
Current price
£10.98

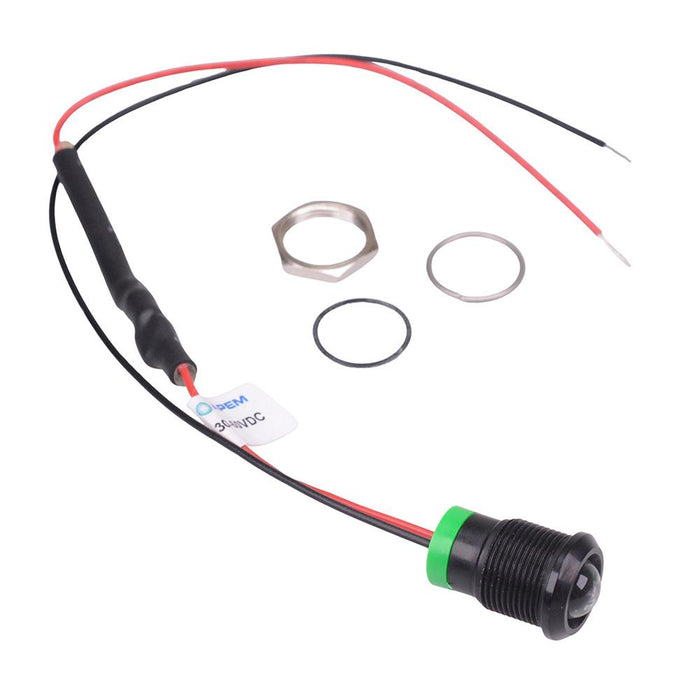

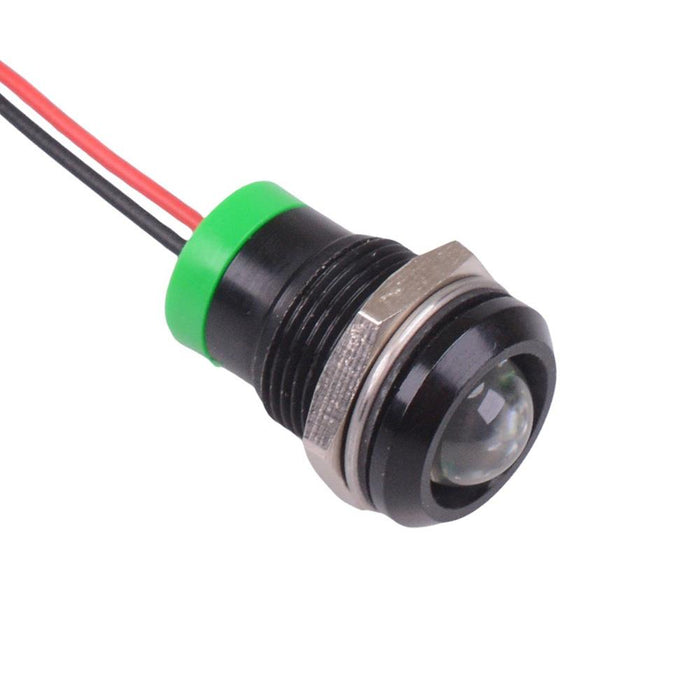

The Q12P3BXXSG30-60E-X0100 is a super bright green panel mount LED indicator from the APEM Q12 series, featuring a 12mm cut-out and sealed to IP67. The indicator features a prominent black plated brass bezel and rear epoxy sealed 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: green Panel cut-out: 12mm Voltage rating: 30-60VDC Current rating: 20mA Panel thickness: 7mm max Brightness: 8000mcd Bezel material: black plated brass Protection level: IP67 Terminal type: 200mm wires Length: 32mm Diameter: 13.5mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Diameter | 13.5mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 32mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 30-60VDC |
