Q12P1CXXB110E Blue 12mm 110VAC LED Panel Indicator IP67 APEM
by APEM
SKU 492578
MPN: Q12P1CXXB110E
Availability:
26 in stock
Original price
£8.28
-
Original price
£8.28
Original price
£8.28
£8.69
£8.69
-
£8.69
Current price
£8.69

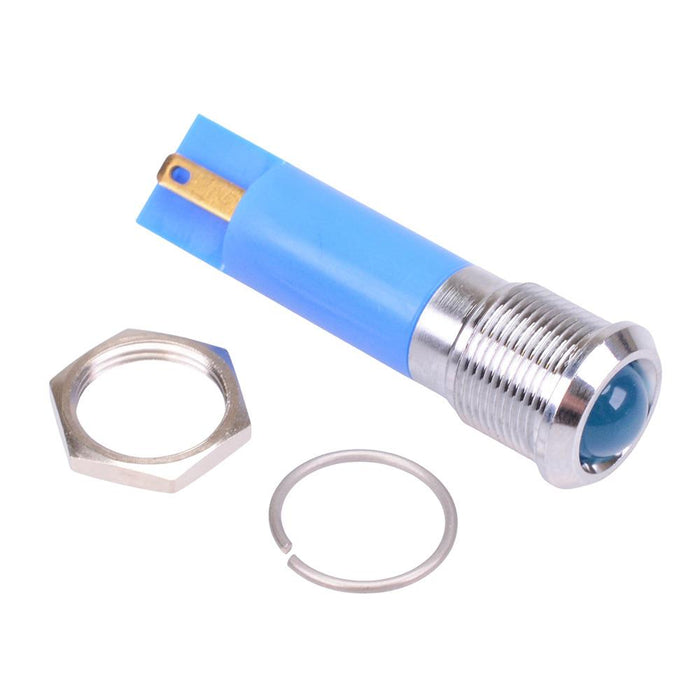

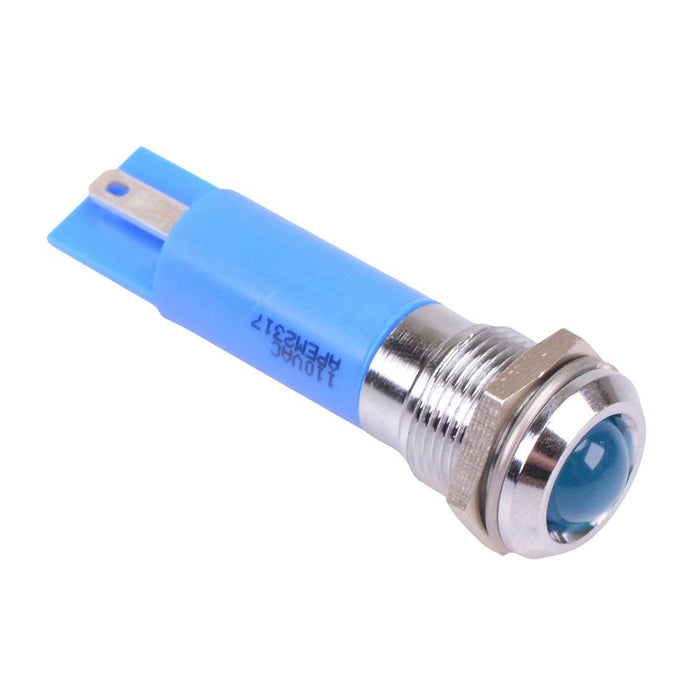

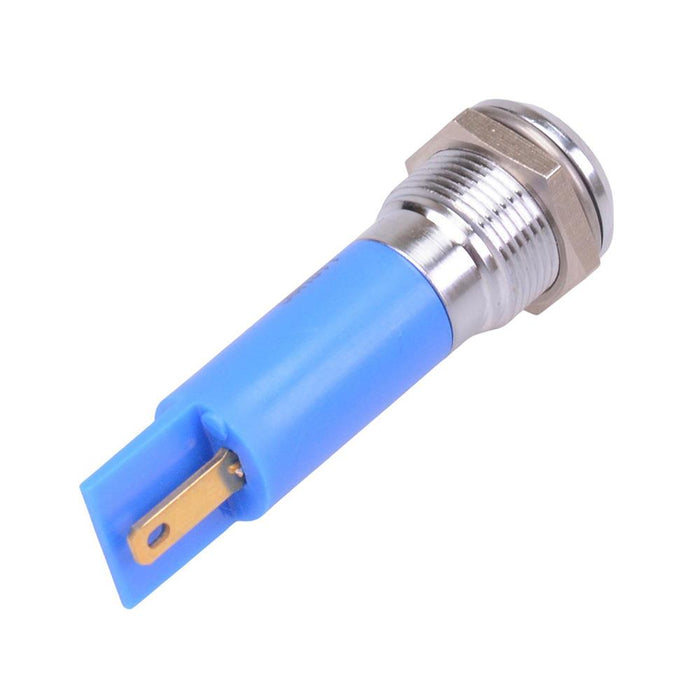

The Q12P1CXXB110E is a blue panel mount LED indicator from the APEM Q12 series, featuring a 12mm cut-out and sealed to IP67. The indicator features a prominent chrome bezel and 2.8mm quick connect terminals. The panel indicator is UL certified and suitable for the most demanding of applications.
Colour: blue Panel cut-out: 12mm Voltage rating: 110VAC Current rating: 6mA Panel thickness: 7mm max Brightness: 800mcd Operating voltage: 99 to 121VAC Bezel material: chrome plated brass Protection level: IP67 Terminal type: quick connect / solder 2.8 x 0.8mm Length: 36.25mm Diameter: 13.5mm UL, REACH and RoHS certified
Specification
| Back Order Lead Time | 120 Days |
| Colour | Blue |
| Diameter | 13.5mm |
| Forward Current | 6mA |
| Lamp Type | LED |
| Length | 36.25mm |
| Life Expectancy | 100,000 Hours |
| MOQ | 1 |
| Mouting Type | Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 7mm Max |
| Protection Level | IP67 |
| Voltage Rating | 110VAC |
