Push Button Z Series Limit Switch SPDT 15A 250VAC

SKU 480406

MPN: 480406

Availability:
182 in stock
Original price £4.75 - Original price £4.75
Original price
£4.75 Inc VAT
£4.75 - £4.75
Current price £4.75 Inc VAT

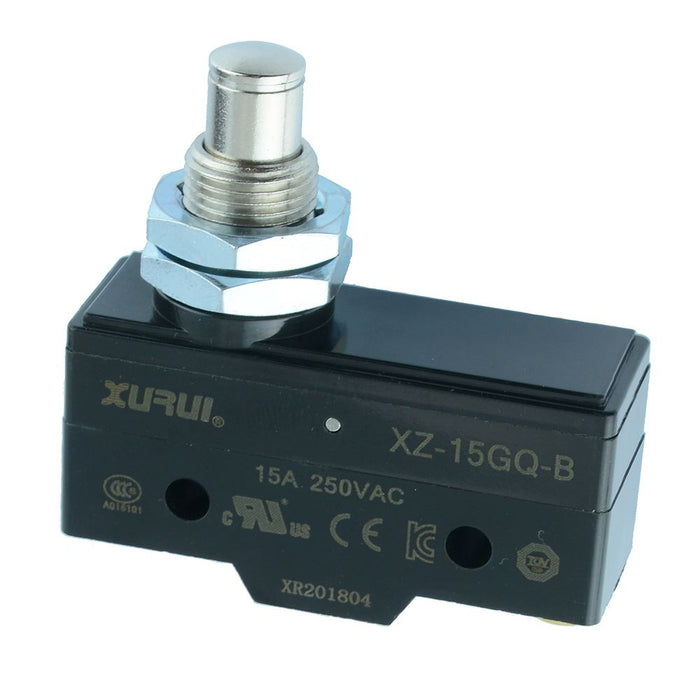

Z series heavy duty microswitch featuring a push button actuator and SPDT contacts. The switch is connected using the screw terminals and is suitable for a wide range of applications requiring a reliable microswitch.

  • Push button actuator
  • Rating: 15A 250VAC
  • NO / NC contacts
  • Screw terminals
  • 1,000,000 operation life
  • Operating force: 350-450g
  • Release force: 114g
  • Specification
    Back order lead time 120 Days
    Contact configuration SPDT
    Contact rating 15A 250VAC
    Current rating 15A
    Electrical life 100,000 Cycles
    Number of positions 2
    Operating force 350-450g
    Operating temperature -25°C to +80°C
    Protection level IP40
    Release force 114g
    Terminal type Screw
    Voltage rating 250VAC
