Push Button Waterproof Microswitch SPDT 10A IP67

SKU 481705

MPN: 481705

Availability:
107 in stock
Original price £1.83 - Original price £1.83
Original price
£1.83 Inc VAT
£1.83 - £1.83
Current price £1.83 Inc VAT

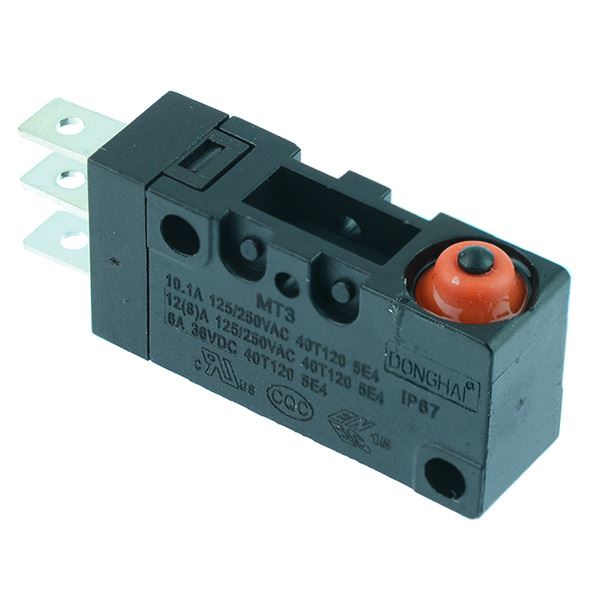

Microswitch featuring a push button actuator, housed in a waterproof compact package capable of switching up to 10A. The switch features quick connect terminals and is suitable for domestic and industrial applications.

  • Push button actuator
  • Rating: 10A 250VAC
  • NO / NC contacts
  • 4.8mm quick connect terminals
  • Operating force: 300gf max
  • Body dimensions: 33 x 10.3 x 15.8mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 10A 250VAC
    Current rating 10A
    Electrical life 100,000 Cycles
    Number of positions 2
    Operating force 300gf Max
    Protection level IP67
    Terminal type Quick Connect
    Voltage rating 250VAC
