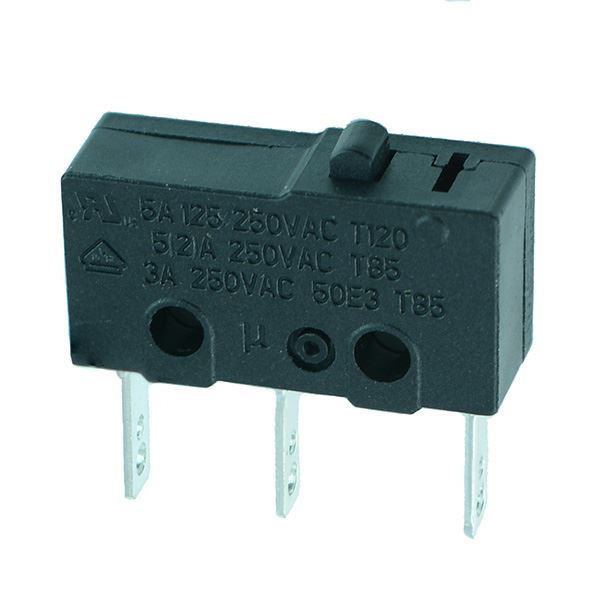

Push Button V4 Miniature Microswitch SPDT 5A

SKU 481686

MPN: 481686

Availability:
929 in stock
Original price £0.56 - Original price £0.56
Original price
£0.56 Inc VAT
£0.56 - £0.56
Current price £0.56 Inc VAT
Miniature microswitch featuring a push button actuator housed in a compact package capable of switching up to 5A. The switch features SPDT contacts and quick connect terminals making them useful for a wide range of applications including industrial and domestic.

  • Push button actuator
  • Rating: 5A 250VAC
  • NO / NC contacts
  • 2.8mm quick connect terminals
  • Operating force: 4.5N max
  • Body dimensions: 19.9 x 6.7 x 10.4mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 50,000 Cycles
    Number of positions 2
    Operating force 4.5N Max
    Terminal type Quick Connect
    Voltage rating 250VAC
