Push Button V4 Miniature Microswitch SPDT 0.1A 12VDC

SKU 487600

MPN: MBZ106A01C01X03

Availability:
884 in stock
Original price £0.79 - Original price £0.79
Original price
£0.79 Inc VAT
£0.79 - £0.79
Current price £0.79 Inc VAT

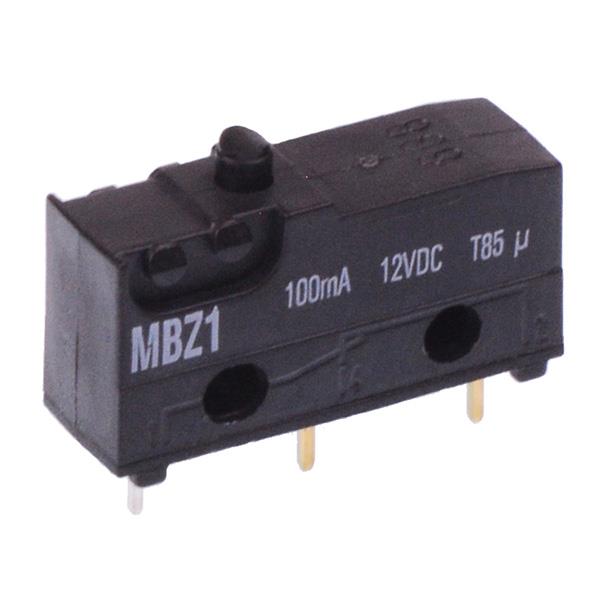

V4 microswitch featuring a push button actuator and 0.1A current rating. The switch features gold plated PCB terminals and is suitable for a wide range of applications.

  • Push button actuator
  • PCB terminals
  • SPDT contacts
  • Rating: 0.1A 12VDC
  • Body dimensions: 20.0 x 9.5 x 6.8mm (length x height x width)
  • Specification
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated
    Contact rating 0.1A 12VDC
    Current rating 0.1A
    Mounting style PCB
    Number of positions 2
    Pitch 7.62mm
    Terminal type Through Hole
    Voltage rating 12VDC
