Push Button V3 Microswitch SPDT 16A 250VAC

SKU 480396

MPN: 480396

Availability:
311 in stock
Original price £1.02 - Original price £1.02
Original price
£1.02 Inc VAT
£1.02 - £1.02
Current price £1.02 Inc VAT

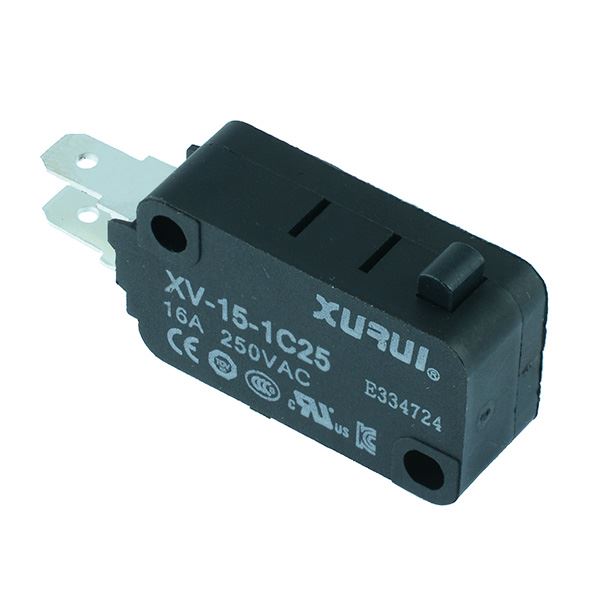

Standard size V3 microswitch featuring a push button actuator and SPDT contacts. The switch is connected using the 4.8mm terminals and is suitable for a wide range of applications due to its compact size and reliability.

  • Push button actuator
  • Rating: 15A 250VAC
  • NO / NC contacts
  • 4.8mm quick connect terminals
  • 1,000,000 operation life
  • 200g operating force
  • 50g release force
  • Specification
    Back order lead time 120 Days
    Contact configuration SPDT
    Contact rating 16A 250VAC
    Current rating 16A
    Electrical life 100,000 Cycles
    Number of positions 2
    Operating force 200g
    Operating temperature -25°C to +80°C
    Protection level IP40
    Release force 50g
    Terminal type Quick Connect
    Voltage rating 250VAC
