PT65721L508 Decimal Rotary Coded Switch APEM
by APEM
SKU 488040
MPN: PT65721L508
Availability:
66 in stock
Save 3%
Original price
£3.82
Original price
£3.82
-
Original price
£3.82
Original price
£3.82
Current price
£3.70
£3.70
-
£3.70
Current price
£3.70

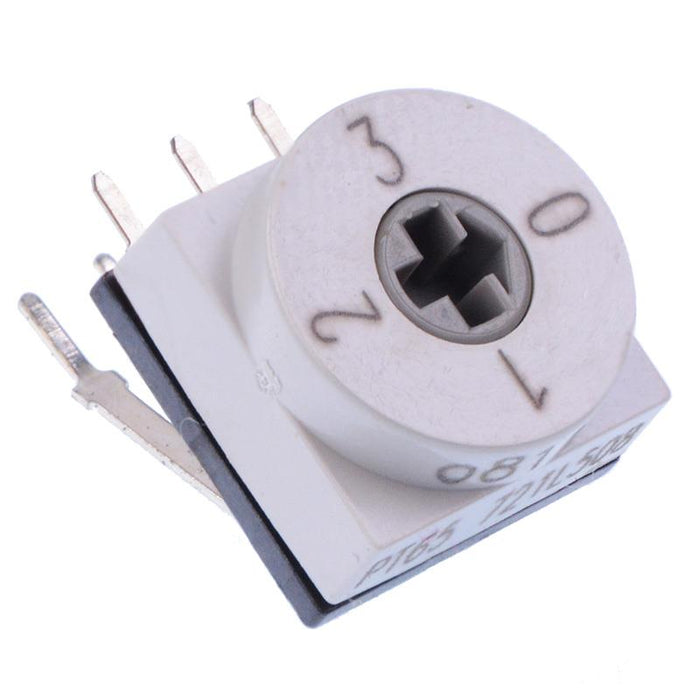

The PT65721L508 is a subminiature rotary code switch by APEM, featuring a arrow shaped actuator and decimal coded.
Arrow shaped actuator Decimal code Right angle terminals Operating voltage: ≤42V Contact load static: ≤0.2A Contact load dynamic: ≤0.15A Terminal pitch: 5.08 x 2.54mm Dimensions: 10.0 x 10.0mm (length x width)
Specification
| Back Order Lead Time | 120 Days |
| Contact Material | Gold Plated Bronze |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Operating Temperature | -20°C to +70°C |
| Pitch | 5.08mm |
| Terminal Type | Solder |
| Voltage Rating | 42VDC |
