PT65702 BCD Complement Rotary Coded Switch APEM
by APEM
SKU 492532
MPN: PT65702
Availability:
2046 in stock
Original price
£2.99
-
Original price
£2.99
Original price
£2.99
£2.99
£2.99
-
£2.99
Current price
£2.99

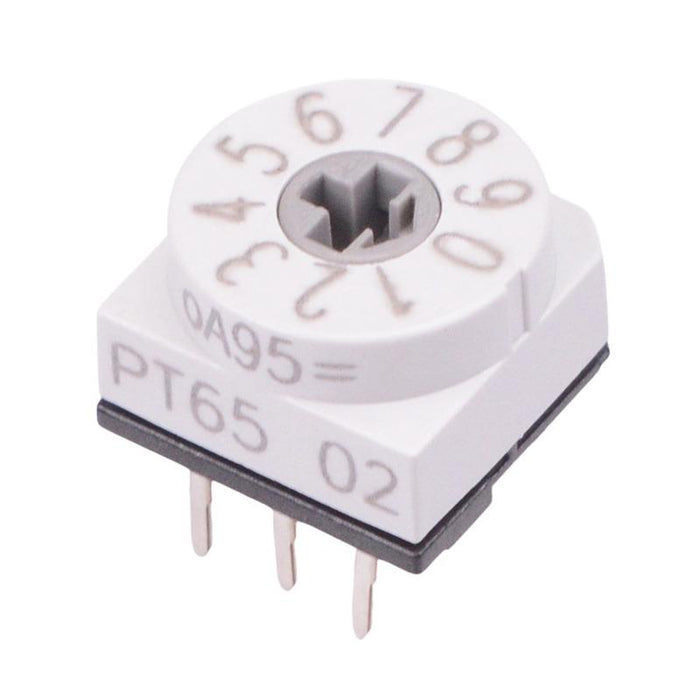

The PT65702 is a subminiature rotary code switch by APEM, featuring a cross actuator and bcd complement code.
Cross actuator - compatible with APEM spindles and plastic knobs BCD complement code Operating voltage: ≤42V Contact load static: ≤0.2A Contact load dynamic: ≤0.15A Terminal pitch: 7.62 x 2.54mm Dimensions: 10.0 x 10.0mm (length x width)
Specification
| Back Order Lead Time | 120 |
| Contact Material | Gold Plated Bronze |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Operating Temperature | -20°C to +70°C |
| Pitch | 2.54mm |
| Terminal Type | Solder |
| Voltage Rating | 42VDC |
