PT65401 APEM Subminiature BCD Rotary Code Switch
by APEM
SKU 487616
MPN: PT65401
Availability:
69 in stock
Original price
£3.33
-
Original price
£3.33
Original price
£3.33
£3.33
£3.33
-
£3.33
Current price
£3.33

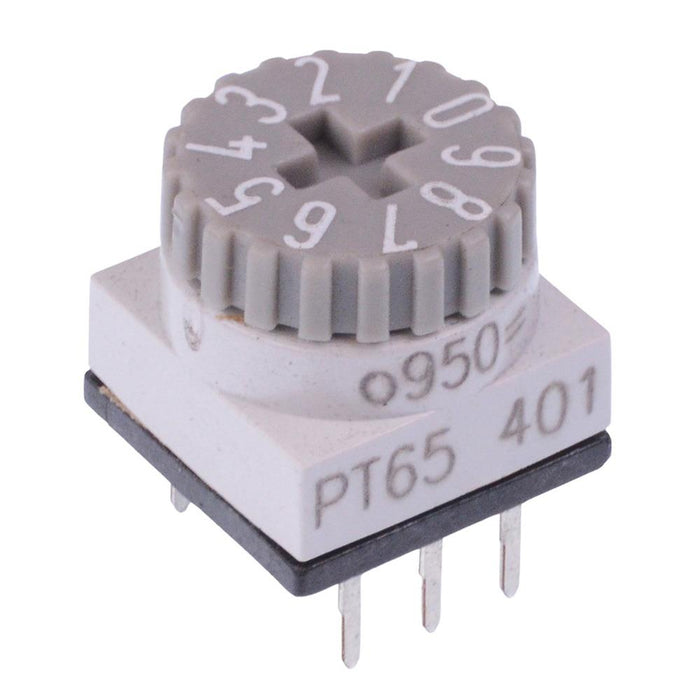

The PT65401 is a subminiature rotary code switch by APEM, featuring a segment wheel actuator and bcd code.
Segment wheel actuator BCD code Operating voltage: ≤42V Contact load static: ≤0.2A Contact load dynamic: ≤0.15A Terminal pitch: 7.62 x 2.54mm Dimensions: 10.0 x 10.0mm (length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Material | Gold Plated Bronze |
| Contact Rating | 200mA 42V |
| Current Rating | 200mA |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Operating Temperature | -20°C to +70°C |
| Pitch | 2.54mm |
| Product Series | PT65 |
| Terminal Type | Solder |
| Voltage Rating | 42V |
