Proximity Reed Switch NO 400V - S1256

by Comus
SKU 552563

MPN: S1256

Availability:
Only 3 left!
Original price £6.75 - Original price £6.75
Original price
£6.75 Inc VAT
£6.75 - £6.75
Current price £6.75 Inc VAT

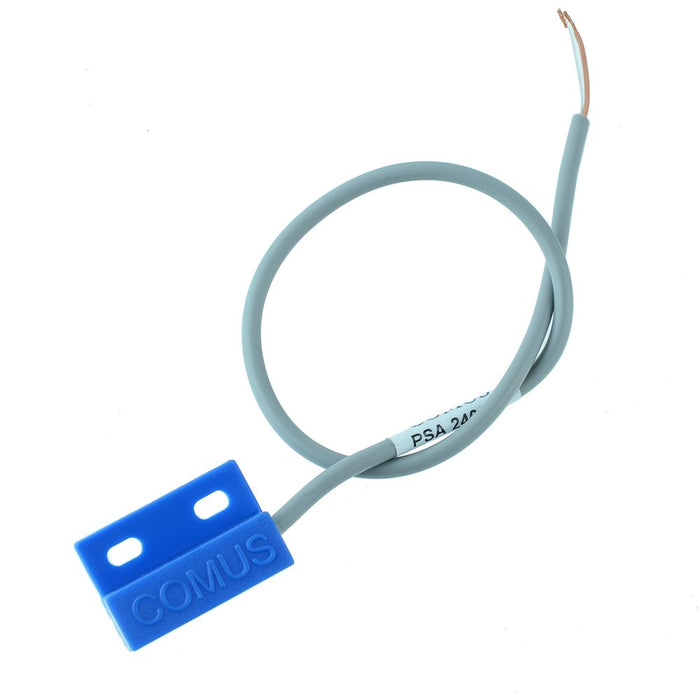

The PSA 240/30 is a rectangular proximity switch featuring normally open contacts, blue nylon 66 housing. Suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.

  • Suggested magnet: PSM
  • Normally open contacts
  • Maximum switching voltage: 400VAC
  • Maximum switching current: 0.5A
  • Maximum switching capacity: 10W/VA
  • Switching distance: 8mm Min
  • 300mm of 2 x round 0.14mm² PVC covered Grey and Insulated Brown / White
  • Specification
    Back order lead time 180 Days
    Carry current 1A
    Contact configuration SPST-NO
    Material Nylon 66
    Maximum switching capacity 10W/VA
    Maximum switching current 0.5A
    Maximum switching voltage 400VAC
    Operating temperature -20°C to +85°C
