Proximity Reed Switch CO 100V - S1257
by Comus
SKU 552564
MPN: S1257
Availability:
16 in stock
Original price
£7.80
-
Original price
£7.80
Original price
£7.80
Inc VAT
£7.80
-
£7.80
Current price
£7.80
Inc VAT

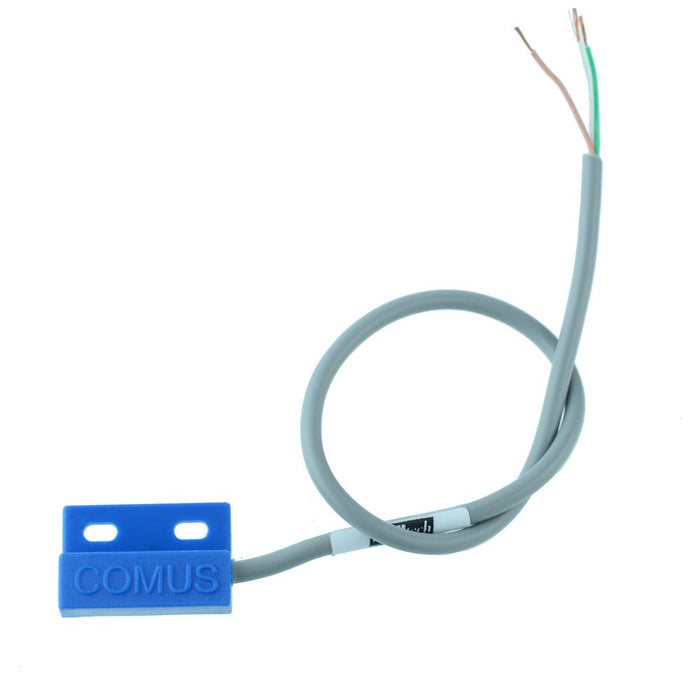

The PSC 175/30 is a rectangular proximity switch featuring changeover contacts, blue nylon 66 housing. Suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.
Suggested magnet: PSM Changeover contacts Maximum switching voltage: 100VAC Maximum switching current: 0.5A Maximum switching capacity: 5W/VA Switching distance: 8mm Min 300mm of 3 x round 0.14mm² PVC covered Grey and Insulated Brown / White / Green
Specification
| Back order lead time | 180 Days |
| Carry current | 1A |
| Contact configuration | SPDT |
| Material | Nylon 66 |
| Maximum switching capacity | 5W/VA |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 100VAC |
| Operating temperature | -20°C to +85°C |
