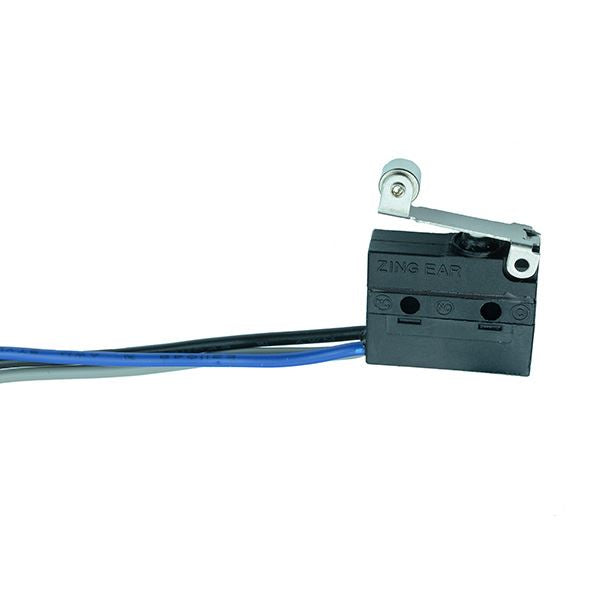

Prewired IP67 Short Roller Microswitch SPDT 5A

by Canal
SKU 550430

MPN: G905-300F06W1

Availability:
Out of stock
Sold out
Original price £4.09 - Original price £4.09
Original price
£4.09
£4.09 - £4.09
Current price £4.09
High quality microswitch with a push button actuator, suitable for hard wearing applications including industrial and automotive.

  • 15.7mm length roller lever
  • Rating: 5A 250VAC
  • SPDT, NO/NC
  • Maintained momentary action
  • 100gf maximum operating force
  • IP67 protection level
  • 500mm 20AWG UL1007 cable
  • Specification
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Rating 5A 250VAC
    Current Rating 5A
    Electrical Life 6000 Cycles Min
    Number of Positions 2
    Operating Force 110gf Max
    Operating Temperature -25°C to +120°C
    Protection Level IP67
    Terminal Type Leads
    Voltage Rating 250VAC
