PHAP5-31VA2N2S2W3 APEM 3.1mm Height 6mm x 6mm Low Profile Surface Mount Tactile Switch 160g Tube Packaging

SKU 486173


450 in stock
Original price £0.49 - Original price £0.49
Original price
£0.49 Inc VAT
£0.49 - £0.49
Current price £0.49 Inc VAT

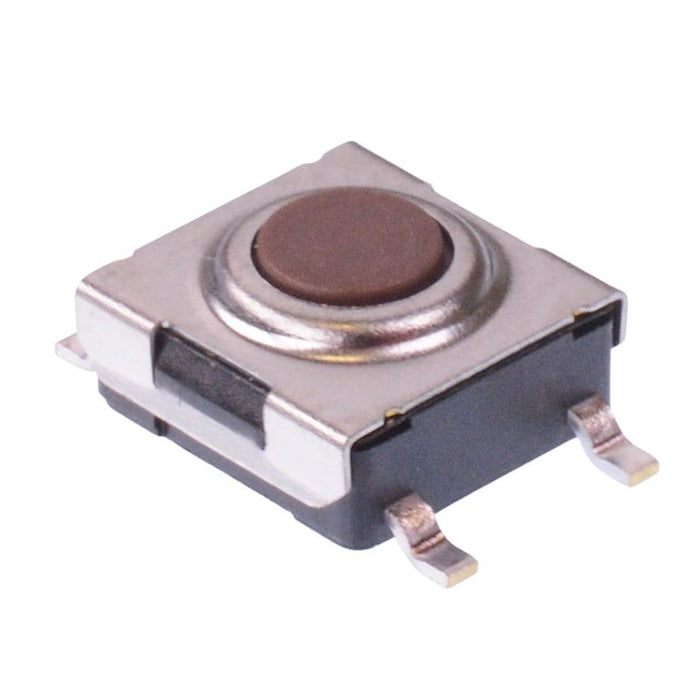

The PHAP5-31VA2N2S2W3 is a low profile tactile switch with a 6mm x 6mm standard package and 3.1mm height. The switch provides a positive tactile feedback and is supplied in tube packaging, suitable for SMT mounting.

  • Vertical SMT mounting
  • 6mm x 6mm package
  • 3.1mm height
  • Washable
  • Rating: 50mA 12VDC
  • Operating force: 160g
  • Travel: 0.25mm
  • APEM PHAP5-31 series
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Stainless Steel
    Contact rating 50mA 12VDC
    Current rating 50mA
    Height 3.1mm
    Material Polyamide
    Moq 5
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating force 160g
    Operating temperature -25°C to +70°C
    Product series PHAP5-31
    Switch operation Off-(On)
    Terminal type Surface Mount
    Voltage rating 12VDC
